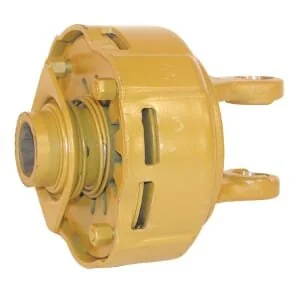

Walterscheid - 5622216135 - Friction Clutch W2500 K92/4 135danm
Walterscheid - 5622216135 - Friction Clutch W2500 K92/4 135danm

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Walterscheid - 5622216135 - Friction Clutch W2500 K92/4 135danm

Walterscheid - 5622216135 - Friction Clutch W2500 K92/4 135danm

€700.84

(Excl. VAT)

Price

(Excl. VAT)

€700.84

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Benefits
Small installation space Torque retention Smooth transition
Properties
Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Cross length
89 mm
Technical info
Observe maintenance instructions
Shaft size code
W2500
Clutch type code
K92/4
Outside diameter
173 mm
Application range
Mowers Rotary harrows Pick-up
Max static torque
1350 N·m
Cross cap diameter
36 mm
LClutch part length
64 mm
Max. rotation speed
1000 r/min
Connection locking type
Collar lock
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid
