Walterscheid - 57.192.18 - Shear Bolt Coupling

OEM Supplier

SKU: walterscheid-5719218

Walterscheid - 57.192.18 - Shear Bolt Coupling

€568.02€485.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€568.02

Brand
Walterscheid
Part Numbers
5719218
Pros
Prevents against subsequent damage Easy to repair
Unit
Each
Details
Complete interruption of the drive Can be restored by replacing a shear bolt
Benefits
Prevents consequent damage Easily restorable
Properties
Independent of the direction of rotation Power transmission via shear bolt
Technical info
Protects against blockages and overload
Product details
Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Shaft size code
W2400 P400
Clutch type code
KB61/20
Long description
Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Application range
Fertiliser pump Shredders Light balers

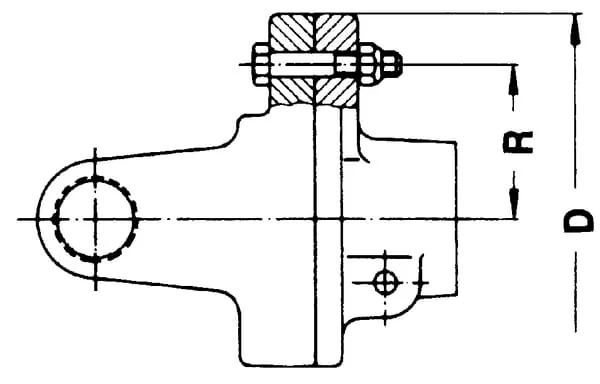

DOutside diameter
156 mm
Max dynamic torque
2500 N·m
Max. rotation speed
1000 r/min
Shear bolts quality
8.8
Share bolts thread length
60
RShare bolts circle radius
48
Share bolts thread diameter
M10
Locking type by machine side
Push pin
Connection outside diameter by tractor side
1-3/4 Inch
Connection number of splines/grooves by tractor side
6
EAN
8435194184892
Manufacturer
Walterscheid

Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 8,406 genuine Walterscheid spare parts.
