Walterscheid - 5811651120 - Freewheel Coupling

OEM Supplier

SKU: walterscheid-5811651120

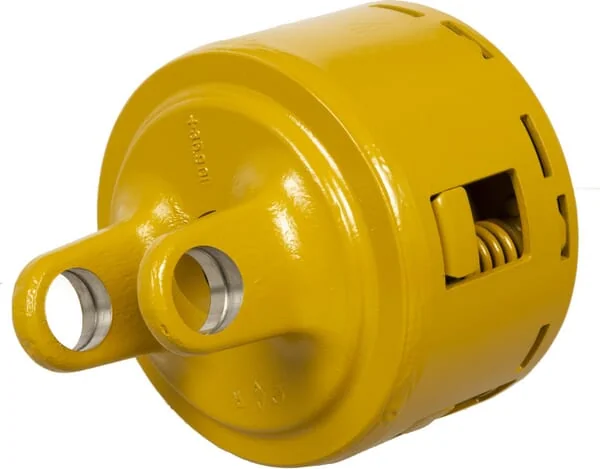

Walterscheid - 5811651120 - Freewheel Coupling

€1,218.24

(excl. VAT)
RRP:€1,328.94
Save €110.70

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€1,218.24

The Walterscheid 5811651120 is a genuine freewheel coupling designed for tractor PTO shafts. This Type 1 freewheel clutch ensures disengagement when the implement's speed exceeds the PTO speed, protecting the driveline from damage. It features a 1 3/8" - 6 spline connection for the tractor side, an overall length of 120 mm, an outer diameter of 95 mm, and a maximum torque capacity of 1500 Nm. Weighing 1.12 kg, this robust coupling provides reliable performance for agricultural machinery.
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Part Numbers
5811651120
Unit
Each
Details
Combination of freewheel and friction disc clutch Absorbs peak loads for short periods Protection for subsequent mass Max. torque adjustable via circlip
Benefits
Torque retention Smooth transition Easier coupling when PTO shaft is braked Wide range of applications
Properties
Depending on the direction of rotation Power transmission via friction discs No noise during friction Noise when freewheeling Suitable as a starting clutch
Cross length
86 mm
Technical info
Observe maintenance instructions
Shaft size code
W2400
Clutch type code
FK96/4L
Long description
Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500
Application range
Big balers Round balers Mowers
DOutside diameter
170 mm
Max static torque
1200 N·m
Cross cap diameter
32 mm
LClutch part length
90 mm
Max. rotation speed
1000 r/min
Connection locking type
Collar lock
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
EAN
8435194185738
Manufacturer
Walterscheid
