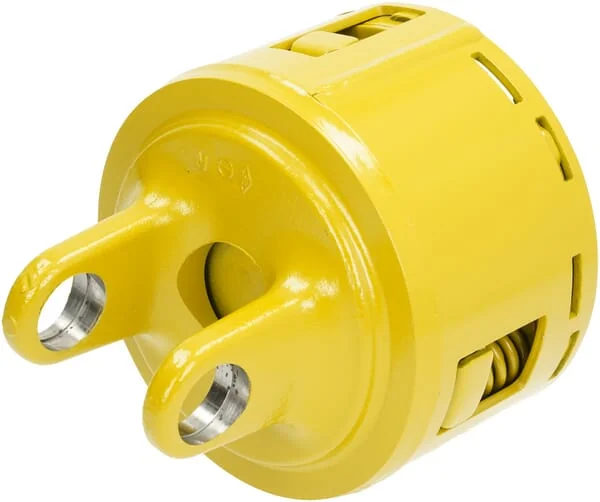

Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400

Walterscheid - 5810951180 - Friction Clutch FK96/4R 180danm W2400

€1,119.09

(Excl. VAT)

Price

(Excl. VAT)

€1,119.09

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Benefits
Torque retention Smooth transition Easier coupling when PTO shaft is braked Wide range of applications
Properties
Depending on the direction of rotation Power transmission via friction discs No noise during friction Noise when freewheeling Suitable as a starting clutch
Cross length
86 mm
Technical info
Observe maintenance instructions
Shaft size code
W2400 P400
Clutch type code
FK96/4R
Application range
Big balers Round balers Mowers
DOutside diameter
170 mm
Max static torque
1500 N·m
Cross cap diameter
32 mm
Max dynamic torque
1800 N·m
LClutch part length
90 mm
Max. rotation speed
1000 r/min
Connection locking type
Collar lock
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid
