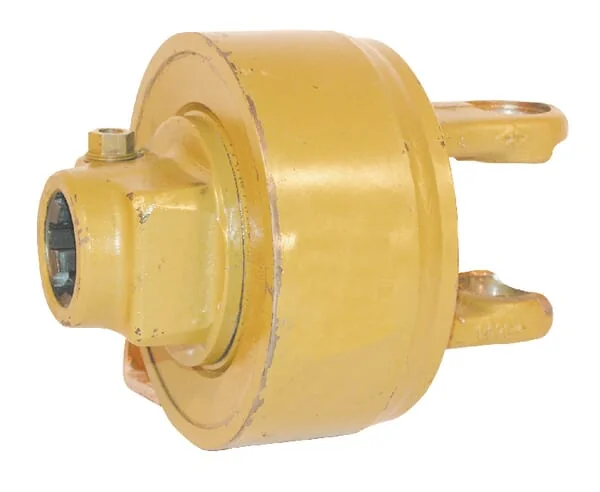

Walterscheid - 59.110.43/180 - Cam Shift Coupling

OEM Supplier

SKU: walterscheid-5911043180

Walterscheid - 59.110.43/180 - Cam Shift Coupling

€1,781.27€1,522.45 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,781.27

Brand
Walterscheid
Part Numbers
5911043180
Fits

Walterscheid

Pros
1 direction of rotation Protection of the drive train No time loss due to coupling repair
Unit
Each
Details
Drive is interrupted when overloaded Switches on automatically at low speed
Benefits
Drive protection No time is lost by restoring torque
Properties
1 direction of rotation
Cross length
76 mm
Technical info
Torque can be set to pulsing by reducing the speed
Product details
Dropping the rpm allows the torque to build up in a pulsating way Drive stops when overloaded Automatically switches on with low rpm
Shaft size code
W2400 P400
Clutch type code
K64/22R
Long description
Cam clutches K64 Series Series includes K64/12, K64/22, K64/24
Outside diameter
168 mm
Application range
Round baler Silage wagon Rotary harrow Shredder adapter
Max static torque
1800 N·m
Cross cap diameter
32 mm
Max. rotation speed
1000 r/min
Connection locking type
Clamp cone
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
EAN
8435194196109
Manufacturer
Walterscheid

Dropping the rpm allows the torque to build up in a pulsating way Drive stops when overloaded Automatically switches on with low rpm
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 8,406 genuine Walterscheid spare parts.
