Walterscheid - P4001210S4S5OG - PTO Shaft Without End Yokes

OEM Supplier

SKU: walterscheid-p4001210s4s5og

Walterscheid - P4001210S4S5OG - PTO Shaft Without End Yokes

€798.38

(excl. VAT)
RRP:€867.24
Save €68.86
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€798.38

Dispense duration: 100–250 hours Profiled guard tube prevents turning. Sealed profile tube prevents infiltration of dirt. Quickly removable shielding No safety chain on tractor side required
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Unit
Each
Length
1210 mm
Benefits
Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Size code
P400
Properties
Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual Delivered without yokes
Power 540 rpm
39 kW
Power 1000 rpm
61 kW
Technical info

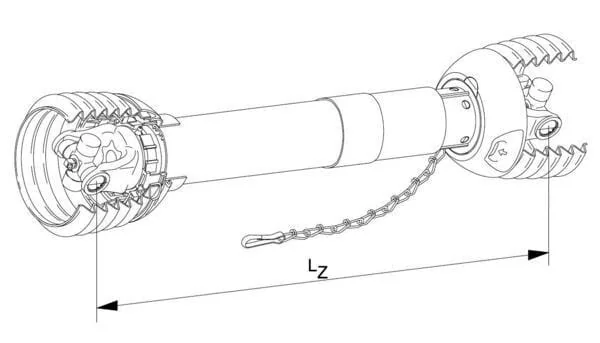

See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 39 kW, 695 Nm Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm Values at working angle 5° and service life 1000 hours LZ = closed length in mm, from intersection to intersection
Protection type
PG25
Application range
Mowers Harvesters Soil cultivating machinery
Max static torque
3000 N·m
Inner tube profile
S4LH
Outer tube profile
S5
Profile tube shape
Star
Locking type by machine side
Cross
Locking type by tractor side
Cross
Cross joint length by machine side
76 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint bush diameter by tractor side
32 mm
Manufacturer
Walterscheid
