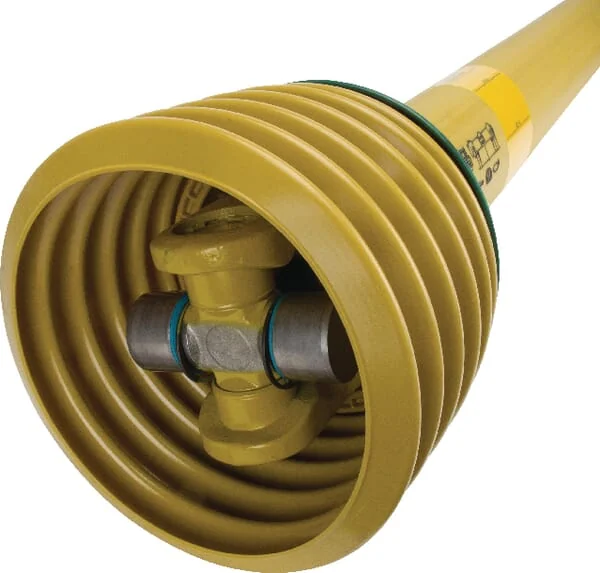

Walterscheid - P5001210IOG - PTO Shaft Inside

OEM Supplier

SKU: walterscheid-p5001210iog

Walterscheid - P5001210IOG - PTO Shaft Inside

€428.95

(excl. VAT)
RRP:€500.05
Save €71.11

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€428.95

The Walterscheid P5001210IOG is a genuine W2400 series PTO shaft designed for agricultural and industrial machinery. It features a working length (Lz) ranging from 1010 mm to 1500 mm and an overall length (Lc) from 1200 mm to 1690 mm. Both the tractor and implement sides are equipped with 1 3/8" - 6 spline connections, ensuring broad compatibility. This robust PTO shaft delivers 35 kW at 540 rpm and 54 kW at 1000 rpm, making it suitable for demanding applications.
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Part Numbers
p5001210iog
Unit
Each
Length
1116 mm
Details
Dispense duration: 100–250 hours Profiled guard tube prevents turning. Sealed profile tube prevents infiltration of dirt. Quickly removable shielding No safety chain on tractor side required
Benefits
Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Size code
P500
Properties
Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual Delivered without yokes
Technical info

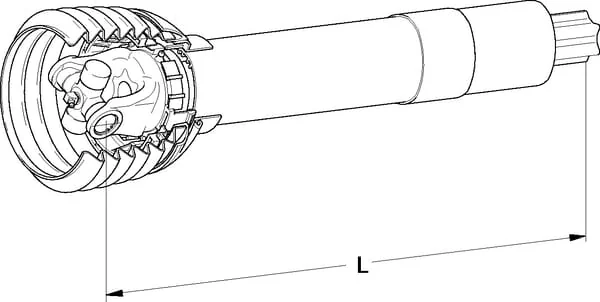

See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 5° and service life 1000 hours LZ = closed length in mm, from intersection to intersection
Protection type
PG20
Long description
PTO drive shafts complete Power Drive series P 500
Application range
Harvesters Soil cultivating machinery Wood shredders
Inner tube profile
S4LH
Cross joint length by machine side
89 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint bush diameter by tractor side
36 mm
Manufacturer
Walterscheid
