Walterscheid - PWE58086013420 - Wide Angle PTO Shaft
Walterscheid - PWE58086013420 - Wide Angle PTO Shaft
Walterscheid - PWE58086013420 - Wide Angle PTO Shaft
Walterscheid - PWE58086013420 - Wide Angle PTO Shaft
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - PWE58086013420 - Wide Angle PTO Shaft

Walterscheid - PWE58086013420 - Wide Angle PTO Shaft

€1,723.77

(Excl. VAT)

Price

(Excl. VAT)

€1,723.77

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
860 mm
Benefits
Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Size code
PWE 580
Properties
Lubrication interval: max. 60 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual
Power 540 rpm
76 kW
Power 1000 rpm
117 kW
Technical info

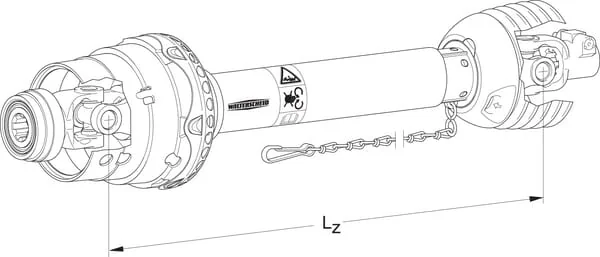

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 10° and service life 1000 hours LZ = closed length centre distance of outer intersection
Protection type
PG25
Application range
Mixing wagon Slurry wagon Harvesters Silage wagon
Max static torque
6000 N·m
Inner tube profile
S4GA
Outer tube profile
S5
Profile tube shape
Star
Attachment machine side
Clamp yoke
Attachment tractor side
Quick disconnect yoke
Outer tube wall thickness
4,5 mm
Locking type by machine side
Clamp cone
Locking type by tractor side
Automatic collar lock
Inner tube large outside diameter
51 mm
Outer tube large outside diameter
61 mm
Cross joint length by machine side
89 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint bush diameter by tractor side
36 mm
Connection outside diameter by machine side
1-3/4 Inch
Connection outside diameter by tractor side
1-3/4 Inch
Cross joint length by tractor side - longer part
106 mm
Connection number of splines/grooves by machine side
20
Connection number of splines/grooves by tractor side
20
Cross joint bush diameter by tractor side - longer part
32 mm
Manufacturer
Walterscheid
