Walterscheid - PWZ5801210OG - Wide Angle PTO Shaft Without Yokes PWZ 580 L: 1210mm, Walterscheid

OEM Supplier

SKU: walterscheid-pwz5801210og

Walterscheid - PWZ5801210OG - Wide Angle PTO Shaft Without Yokes PWZ 580 L: 1210mm, Walterscheid

€2,232.42

(excl. VAT)
RRP:€2,625.58
Save €393.05

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€2,232.42

Robust, radial spherical plain bearing integrated in centring system Profiled guard tube prevents turning. Sealed profile tube prevents infiltration of dirt. Quickly removable shielding No safety chain on tractor side required
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Unit
Each
Length
1210 mm
Benefits
Longer service life than standard pto shaft Lower maintenance costs Faster coupling
Size code
PWZ 580
Properties
Lubrication interval: max. 60 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 2 sided, with guard tube Declaration of conformity Instruction manual Delivered without yokes
Technical info

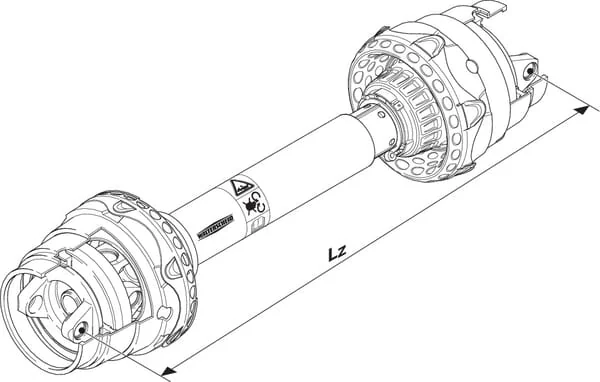

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 10° and service life 1000 hours LZ = closed length centre distance of outer intersection
Protection type
PG20
Application range
Broad spreader Slurry wagon Big baler Silage wagon
Inner tube profile
S4GA
Outer tube profile
S5
Cross joint length by machine side
89 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint bush diameter by tractor side
36 mm
Cross joint length by machine side - longer part
106 mm
Cross joint length by tractor side - longer part
106 mm
Cross joint bush diameter by machine side - longer part
32 mm
Cross joint bush diameter by tractor side - longer part
32 mm
EAN
8432970202443
Manufacturer
Walterscheid
