Home
Attachments & Lift
PTO & Driveline
PTO Shafts

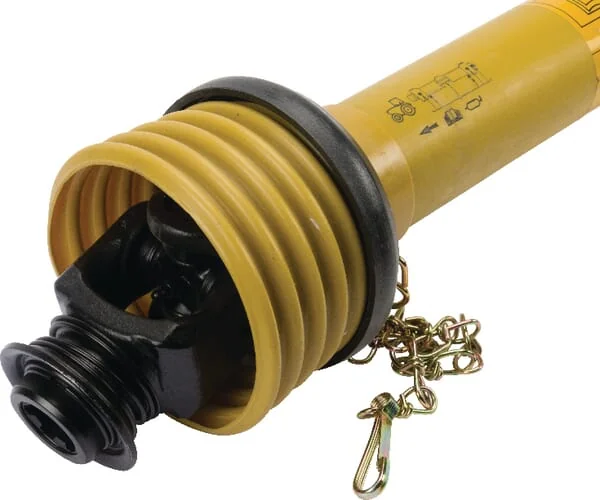

Walterscheid - W200E710 - Adapter ECO W200/710 SD15
Walterscheid - W200E710 - Adapter ECO W200/710 SD15
Walterscheid - W200E710 - Adapter ECO W200/710 SD15
Walterscheid - W200E710 - Adapter ECO W200/710 SD15
Walterscheid - W200E710 - Adapter ECO W200/710 SD15

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Walterscheid - W200E710 - Adapter ECO W200/710 SD15

Walterscheid - W200E710 - Adapter ECO W200/710 SD15

€239.75

(Excl. VAT)

Price

(Excl. VAT)

€239.75

Product Description

The Walterscheid W200E710 Adapter ECO W200/710 SD15 is a genuine component designed for robust agricultural and industrial power transmission systems. This high-quality adapter features a precise length of 100 mm and a weight of 0.7 kg. All specified diameters (D1, D2, D3, D4, D5) measure 71 mm, ensuring a secure and compatible fit. It is identified by its SD15 specification, guaranteeing reliable performance and integration within Walterscheid driveline components.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
710 mm
Size code
W200E
Properties
Tractor side 1-3/8" (6) shaft collar kit Machinery side 1-3/8" (6) slide pin Lubrication interval: 8 hours CE marking awarded
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual
Power 540 rpm
14 kW
Power 1000 rpm
22 kW
Technical info
Follow the Walterscheid instruction manual Max. dynamic capacity 540 rpm: 20 kW, 335 Nm Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm Values at a working angle of 5° and service life 700 hours
Protection type
SD15
Application range
Small crop sprayers Tedders Windrowers
Max static torque
1500 N·m
Inner tube profile
Ov
Outer tube profile
1
Profile tube shape
Lemon
Attachment machine side
Quick disconnect yoke
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Outer tube wall thickness
3 mm
Locking type by machine side
Collar lock
Locking type by tractor side
Collar lock
Inner tube large outside diameter
40 mm
Outer tube large outside diameter
48 mm
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Connection outside diameter by machine side
1-3/8 Inch
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Connection number of splines/grooves by tractor side
6
Manufacturer
Walterscheid
