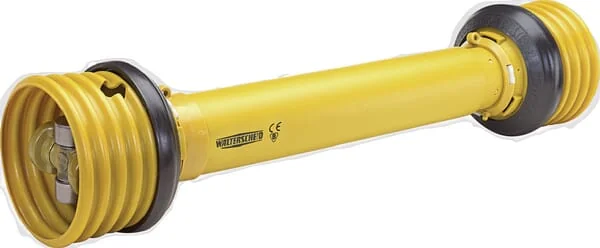

Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm
Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm
Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm
Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping

Pay Securely with

Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm

Walterscheid - W220012100OG - PTO Shaft Without Yokes W2200 L: 1210mm

€340.74

(Excl. VAT)

Price

(Excl. VAT)

€340.74

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
1210 mm
Size code
W2200
Properties
Lubrication frequency from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual Delivery without yokes
Power 540 rpm
20 kW
Power 1000 rpm
31 kW
Technical info
See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Protection type
SD15
Application range
Mowers Harvesters Seeders
Max static torque
1550 N·m
Inner tube profile
Ov
Outer tube profile
1
Profile tube shape
Lemon
Locking type by machine side
Cross
Locking type by tractor side
Cross
Cross joint length by machine side
61 mm
Cross joint length by tractor side
61 mm
Cross joint bush diameter by machine side
24 mm
Cross joint bush diameter by tractor side
24 mm
Manufacturer
Walterscheid
