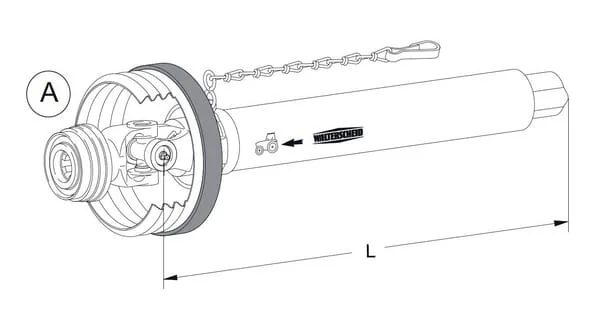

Walterscheid - W23001210I - PTO Half W2300 L: 1,210mm, SD15 Bi-tube

OEM Supplier

SKU: walterscheid-w23001210i

Walterscheid - W23001210I - PTO Half W2300 L: 1,210mm, SD15 Bi-tube

€291.96

(excl. VAT)
RRP:€345.03
Save €53.07

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€291.96

Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,301 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Part Numbers
8435194027786; W23001210I
Unit
Each
Length
1130 mm
Size code
WH 2300
Properties
Tractor-side 1–3/8" (6) shaft collar kit Lubrication interval from 50 to 100 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of
Semi clutch axle with shielding Declaration of conformity Instruction manual
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Technical info
See Walterscheid instruction manual Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm Values at working angle 5° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Protection type
SD15
Long description
PTO drive shafts complete standard series W 2300 (inner)
Application range
Mowers Harvesters Seeders
Max static torque
2500 N·m
Inner tube profile
Ov
Profile tube shape
Lemon
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4 mm
Locking type by tractor side
Automatic collar lock
Inner tube large outside diameter
40 mm
Cross joint length by machine side
75 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint bush diameter by tractor side
27 mm
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Manufacturer
Walterscheid
