Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480
Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480
Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480
Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480

Walterscheid - WWE2480860S4OG - Wide-angle PTO Shaft without yokes WWE 2480

€821.76

(Excl. VAT)

Price

(Excl. VAT)

€821.76

Product Description

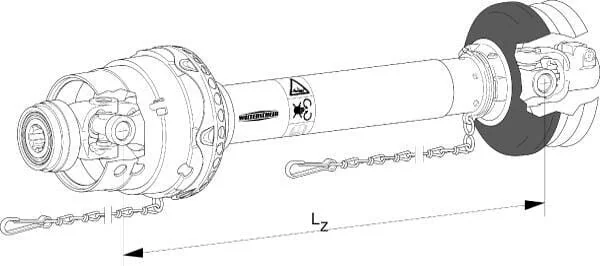

PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking Angle in continuous use maximum 25° Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length in mm, from cross to cross
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,301 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Pros
PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions Supplied without yokes Supplied without cross piece on wide-angle side
Unit
Each
Length
860 mm
Size code
WWE 2480
Properties
Lubrication interval: 8 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of
Wide angle pto-shaft, 1 sided, with guard tube Declaration of conformity Instruction manual Delivery without yokes Delivery without cross journal on the wide-angle side
Technical info
Working angle with continuous use maximum 25º Working angle may only reach 80º briefly Max. dynamic capacity 540 rpm - 39 kW - 695 Nm Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm Values at working angle 10° and service life 1000 hours LZ = slid-in length in mm, from intersection to intersection
Product details
PTO shaft 1-sided wide-angle with safety guard Declaration of conformity User instructions Lubricating interval of 8 hours Meets the requirements according to EC 89/392 EEC Meets safety standard EN12965 Provided with "CE" marking Angle in continuous use maximum 25° Angle may be 80° only briefly Max. dyn. power 540 rpm: 39kW - 695Nm Max. dyn. power 1000 rpm: 61kW - 580Nm Values at bending angle 10° and service life 1000 hours LZ= Retracted length in mm, from cross to cross
Protection type
SD25
Long description
Wide-angle PTO shafts 80° series WWE 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc.
Application range
Mixing wagon Slurry wagon Harvesters Silage wagon
Max static torque
3800 N·m
Inner tube profile
S4LGA
Outer tube profile
S5
Cross joint length by machine side
76 mm
Cross joint length by tractor side
76 mm
Cross joint bush diameter by machine side
32 mm
Cross joint bush diameter by tractor side
32 mm
Cross joint length by tractor side - longer part
94 mm
Cross joint bush diameter by tractor side - longer part
27 mm
Manufacturer
Walterscheid
