Walterscheid - WWZ23801210I1B - Wide Angle PTO Half Shaft

OEM Supplier

SKU: walterscheid-wwz23801210i1b

Walterscheid - WWZ23801210I1B - Wide Angle PTO Half Shaft

€762.09

(excl. VAT)
RRP:€918.59
Save €156.53
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€762.09

Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Unit
Each

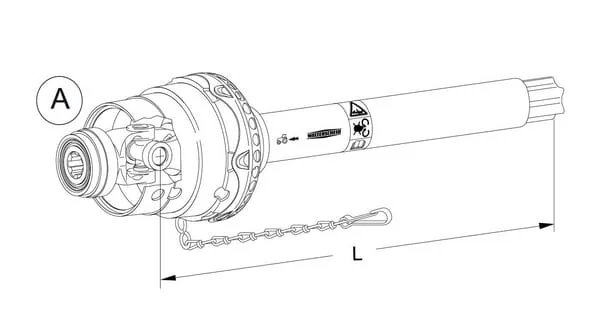

Length
1125 mm
Size code
WWH 2380
Properties
Tractor-side 1–3/8" (6) shaft collar kit Lubrication interval: 8 hours Fulfils EC 89/392 EEC requirements Complies with EN12965 safety standard CE marking available
Consists of
Pto shaft with guard tube Declaration of conformity Instruction manual
Power 540 rpm
28 kW
Power 1000 rpm
44 kW
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 28 kW, 500 Nm Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm Values at working angle 10° and service life 1000 hours
Protection type
SD25
Application range
Slurry tank Crop sprayers Fertiliser spreader Hay press
Max static torque
2500 N·m
Inner tube profile
1bGA
Profile tube shape
Lemon
Attachment tractor side
Quick disconnect yoke
Inner tube wall thickness
4,5 mm
Locking type by tractor side
Automatic collar lock
Inner tube large outside diameter
49 mm
Cross joint length by machine side
75 mm
Cross joint length by tractor side
75 mm
Cross joint bush diameter by machine side
27 mm
Cross joint bush diameter by tractor side
27 mm
Connection outside diameter by tractor side
1-3/8 Inch
Cross joint length by machine side - longer part
91 mm
Cross joint length by tractor side - longer part
91 mm
Connection number of splines/grooves by tractor side
6
Cross joint bush diameter by tractor side - longer part
24 mm
Manufacturer
Walterscheid
