Name: Walterscheid - WWZ25801010 - Wide-Angle PTO Shaft WWZ 2580 L: 1,010mm
Brand: Walterscheid
SKU: walterscheid-wwz25801010
Price: 1902.05 EUR
Availability: InStock

Home

Attachments & Lift

PTO & Driveline

PTO Shafts

Walterscheid - WWZ25801010 - Wide-Angle PTO Shaft WWZ 2580 L: 1,010mm

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping

Pay Securely with

Walterscheid - WWZ25801010 - Wide-Angle PTO Shaft WWZ 2580 L: 1,010mm

€1,902.05

(Excl. VAT)

Price

(Excl. VAT)

€1,902.05

Number of products

Product Details

Brand

Walterscheid

Unit

Each

Length

1010 mm

Size code

WWZ 2580

Properties

Tractor side 1-3/8" (6) shaft collar kit Device side 1-3/8" (6) slide pin Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available

Consists of

Wide angle pto-shaft, 2 sided, with guard tube Declaration of conformity Instruction manual

Power 540 rpm

66 kW

Power 1000 rpm

102 kW

Technical info

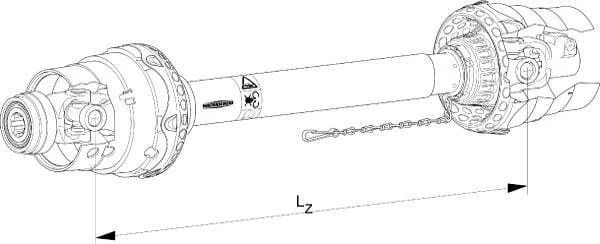

Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 10° and service life 1000 hours LZ = slid in length centre distance of outer intersection

Protection type

SD25

Long description

Wide-angle CV PTO drive shafts complete 80° series WWZ 2580 / 80°

Application range

Broad spreader Slurry wagon Big baler Silage wagon

Max static torque

6000 N·m

Inner tube profile

S4GA

Outer tube profile

Profile tube shape

Star

Attachment machine side

Quick disconnect yoke

Attachment tractor side

Quick disconnect yoke

Outer tube wall thickness

4,5 mm

Locking type by machine side

Collar lock

Locking type by tractor side

Collar lock

Inner tube large outside diameter

51 mm

Outer tube large outside diameter

61 mm

Cross joint length by machine side

89 mm

Cross joint length by tractor side

89 mm

Cross joint bush diameter by machine side

36 mm

Cross joint bush diameter by tractor side

36 mm

Connection outside diameter by machine side

1-3/8 Inch

Connection outside diameter by tractor side

1-3/8 Inch

Cross joint length by machine side - longer part

106 mm

Cross joint length by tractor side - longer part

106 mm

Connection number of splines/grooves by machine side

Connection number of splines/grooves by tractor side

Cross joint bush diameter by machine side - longer part

32 mm

Cross joint bush diameter by tractor side - longer part

32 mm

Manufacturer

Walterscheid
