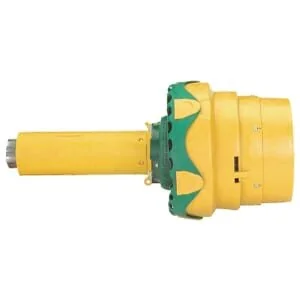

Walterscheid - WWZ25801210AOG - 1/2 Cardan 36 EXT S5 Without Jaw
Walterscheid - WWZ25801210AOG - 1/2 Cardan 36 EXT S5 Without Jaw

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Walterscheid - WWZ25801210AOG - 1/2 Cardan 36 EXT S5 Without Jaw

Walterscheid - WWZ25801210AOG - 1/2 Cardan 36 EXT S5 Without Jaw

€801.02

(Excl. VAT)

Price

(Excl. VAT)

€801.02

Product Description

The Walterscheid WWZ25801210AOG is a genuine 1/2 Cardan Shaft from the W2580 series, designed for agricultural and industrial applications. This half shaft features an S5 profile tube and measures 890mm in length. It is equipped with 1 3/8" 6-spline connections on both the tractor and implement sides, and comes without a jaw, ensuring compatibility with specific machinery setups. The shaft includes standard protection and has a weight of 11.00 kg.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Length
1014 mm
Size code
WW 2580
Properties
Lubrication interval: 8 hours Fulfilling the requirements laid out in EC 89/392 EEC Compliant with EN12965 safety standard CE marking available
Consists of
Semi clutch axle with shielding Declaration of conformity Instruction manual Supplied without yoke and joint cross
Technical info
Working angle with continuous use maximum 25º Working angle may only briefly be 80º Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm Values at working angle 10° and service life 1000 hours
Protection type
SD25
Application range
Broad spreader Slurry wagon Big baler Silage wagon
Outer tube profile
S5
Locking type by machine side
Wide angle without UJ
Cross joint length by machine side
89 mm
Cross joint length by tractor side
89 mm
Cross joint bush diameter by machine side
36 mm
Cross joint bush diameter by tractor side
36 mm
Cross joint length by machine side - longer part
106 mm
Cross joint length by tractor side - longer part
106 mm
Cross joint bush diameter by machine side - longer part
32 mm
Cross joint bush diameter by tractor side - longer part
32 mm
Manufacturer
Walterscheid
