Walvoil - KV10 - Walvoil Sequence Valve KV10

OEM Quality

SKU: walvoil-kv10

Walvoil - KV10 - Walvoil Sequence Valve KV10

€585.33

(excl. VAT)
RRP:€700.11
Save €114.75

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€585.33

Walvoil
Walvoil, a leading Italian manufacturer of hydraulic components, was founded in 1973 in Reggio Emilia, Italy. The company has grown significantly over the decades, establishing itself as a key player in the global hydraulics market. Today, Walvoil operates as part of the Interpump Group, a world leader in high-pressure piston pumps and power take-offs, further strengthening its position in the industry. Walvoil specializes in the design and production of a comprehensive range of hydraulic valves, pumps, and complete hydraulic systems. Its product portfolio includes directional control valves, proportional valves, hydraulic remote controls, and gear pumps, which are integral to the operation of various mobile and industrial machinery. These components are engineered for precision, reliability, and efficiency, catering to demanding applications in agriculture, construction, and material handling. At Partao, you can find a wide selection of genuine Walvoil spare parts across top categories such as Hydraulic Seals, Bolts & Fasteners, Brackets & Supports, Control Consoles, and Control Modules. Over 11,006 genuine Walvoil spare parts are available at Partao. Operators across diverse sectors rely on Walvoil components for their robust performance and durability. The brand's commitment to innovation and quality ensures that its hydraulic solutions meet the rigorous demands of modern agricultural and industrial equipment, providing precise control and operational efficiency in challenging environments worldwide.

Brand
Part Numbers
KV10
Unit
Each
Details
Integrated pressure relief valve
Benefits
Compact design
Properties
Adjustable ground pressure control Configuration via selector switches Hydro motor with ability to change rotation direction The block does not have an integrated check valve, meaning the lift cylinder can drop if internal leakage occurs Connection T must be fed to the tank without pressure For use in combination with a double-acting valve Leakage oil connection for pressure reduction and hydro motor. Seal material: Buna
Max. flow rate
60 l/min
Technical info

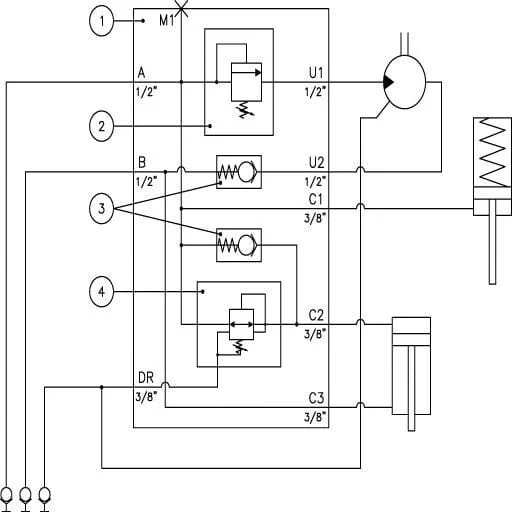

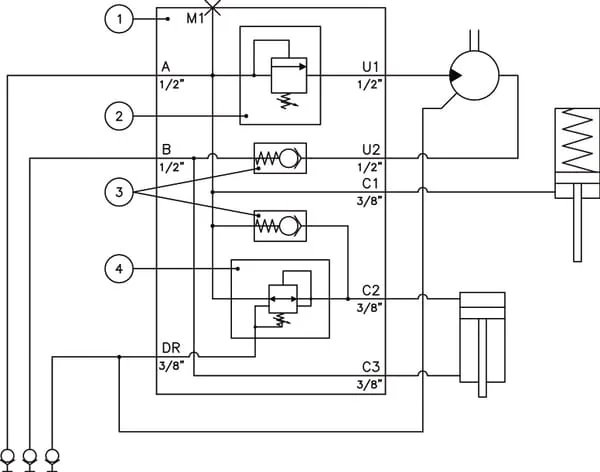

Function 1: hydro motor (cutter), one direction of rotation Function 2: stop valve (slurry tank), single acting Function 3: lift cylinder, double acting, pressure regulated (5–70 bar) via reducing valve
Application range
Slurry tanker For installation in pipes
Max working pressure
200 BAR
Manufacturer
Walvoil
