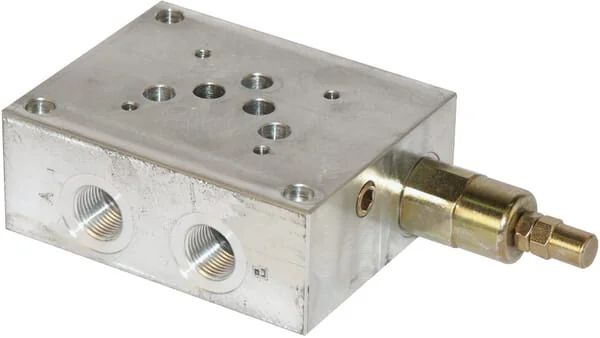

Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"

Walvoil - PBL10VMP - 05 Subplate Relief Valve 1/2"

€113.77

(Excl. VAT)

Price

(Excl. VAT)

€113.77

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Unit
Each
Material
Aluminium
Size code
Cetop 05
Total width
49 mm
Total height
125 mm
Total length
100 mm
Max. flow rate
60 l/min
Workports diameter
1/2 Inch
Max working pressure
210 BAR
Adjustable pressure range
50-220 BAR
Distance side to workport
39,5 mm
Inlet port thread diameter
1/2 Inch
Outlet port thread diameter
1/2 Inch
Distance workport center to center
42 mm
Measuring connection thread diameter
1/4 Inch
Manufacturer
Walvoil
