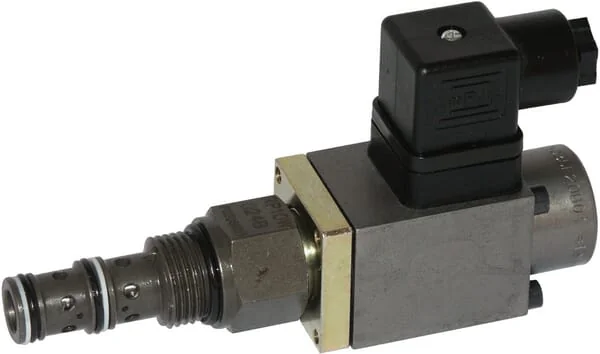

Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Walvoil - RP10W022B - Reducer Valve Cartridge 12V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walvoil - RP10W022B - Reducer Valve Cartridge 12V

Walvoil - RP10W022B - Reducer Valve Cartridge 12V

€269.78

(Excl. VAT)

Price

(Excl. VAT)

€269.78

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Unit
Each
Cavity
CP10-3
Torque
40 N·m
Includes
Includes proportional coil 12 or 24V Proportional connector EMI-AC-01F must be ordered separately
Flow rate
50 l/min
Extra info
In single-acting systems where the output pressure must be proportionally adjustable
Voltage (DC)
12 V
ATotal length
142 mm
Max. pressure
210 BAR
Pressure range
50-200 BAR
Technical info
This pre-controlled proportional reducing valve functions from 2 to 1. It is used to achieve a constant and reduced output pressure at 1 on changing system pressure. Controlled by 12V or 24V coils. To guarantee good function it is essential to pass 3 direct to the tank.
BMounting length
47 mm
SW1Wrench/spanner size
27.0 mm
Manufacturer
Walvoil
