Walvoil - SD111003 - Monoblock Distributor G3-111L
Walvoil - SD111003 - Monoblock Distributor G3-111L
Walvoil - SD111003 - Monoblock Distributor G3-111L
Walvoil - SD111003 - Monoblock Distributor G3-111L
Walvoil - SD111003 - Monoblock Distributor G3-111L
Walvoil - SD111003 - Monoblock Distributor G3-111L

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Walvoil - SD111003 - Monoblock Distributor G3-111L

Walvoil - SD111003 - Monoblock Distributor G3-111L

€156.97

(Excl. VAT)

Price

(Excl. VAT)

€156.97

Product Description

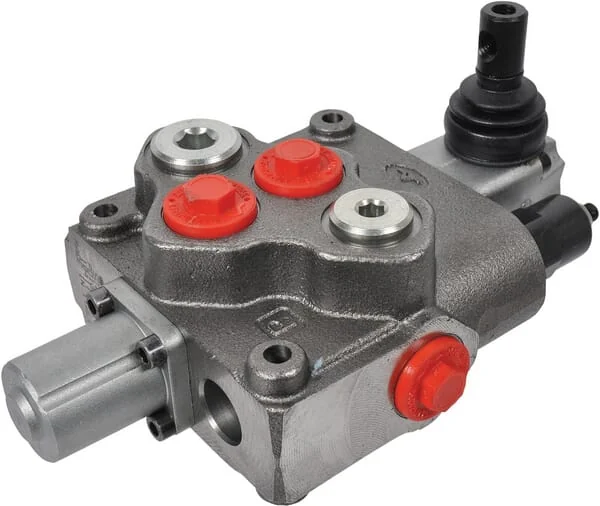

The Walvoil SD111003 is a genuine Walvoil SD11 series monoblock directional control valve designed for open center hydraulic systems. This robust 1-section valve features a nominal flow rate of 40 L/min and is rated for a maximum operating pressure of 350 bar. It is equipped with 3/8" BSP ports for pressure, tank, and work lines (P, T, A, B). The valve includes a double-acting spool with a spring return lever, providing precise and reliable hydraulic control for various agricultural and industrial machinery applications.
Walvoil
Walvoil, a leading Italian manufacturer of hydraulic components, was founded in 1973 in Reggio Emilia, Italy. The company has grown significantly over the decades, establishing itself as a key player in the global hydraulics market. Today, Walvoil operates as part of the Interpump Group, a world leader in high-pressure piston pumps and power take-offs, further strengthening its position in the industry. Walvoil specializes in the design and production of a comprehensive range of hydraulic valves, pumps, and complete hydraulic systems. Its product portfolio includes directional control valves, proportional valves, hydraulic remote controls, and gear pumps, which are integral to the operation of various mobile and industrial machinery. These components are engineered for precision, reliability, and efficiency, catering to demanding applications in agriculture, construction, and material handling. At Partao, you can find a wide selection of genuine Walvoil spare parts across top categories such as Hydraulic Seals, Bolts & Fasteners, Brackets & Supports, Control Consoles, and Control Modules. Over 11,006 genuine Walvoil spare parts are available at Partao. Operators across diverse sectors rely on Walvoil components for their robust performance and durability. The brand's commitment to innovation and quality ensures that its hydraulic solutions meet the rigorous demands of modern agricultural and industrial equipment, providing precise control and operational efficiency in challenging environments worldwide.

Product Details

Brand
Walvoil
Part Numbers
sd111003
Pros
Robust monoblock construction Many options and conversion possibilities, see pdf with order key
Unit
Each
Includes
Control valve Control lever not included
Max. flow rate
70 l/min
Adjustment type
Socket screw
Product details
Robust monoblock construction Main pressure relief valve and check valve in P-channel Parallel switching Suitable for open systems (can be converted for closed systems)
Long description
Walvoil's manual monoblock valves are designed for hydraulic applications with high oil flow rates and medium pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters, harvesters and similar applications. Show more
Sealing material
Nitrile rubber [NBR]
Spool positioning
1-11
Number of sections
1
Outlet port option
AET
Max working pressure
315 BAR
Pressure range relief valve
120-220 BAR
Workport A - Thread diamter
3/4 Inch
Workport B - Thread diamter
1/2 Inch
Manufacturer
Walvoil

Similar items you might like

  • Walvoil

    Walvoil - SD112002 - Control Slide 18-38L-AET

    Walvoil

    €263.09

  • Walvoil

    Walvoil - SD181005 - Control Valve SD18/1 - G3 - 3

    Walvoil

    €299.30

  • Walvoil

    Walvoil - SD181001 - Control Disc SD 18/1 G3-18AET

    Walvoil

    €299.65

  • Walvoil

    Walvoil - SD51001 - Control Slide SD5/1-G3-18L-AET

    Walvoil

    €115.71

  • Walvoil

    Walvoil - SD41001 - Control Slide SD4/1-G3-18L-AET

    Walvoil

    €97.16

  • Walvoil

    Walvoil - SD51005 - Control Valve 28L-AET

    Walvoil

    €109.88

  • Walvoil

    Walvoil - SD51011 - Control Slide SD5/1-G3-513L-AET

    Walvoil

    €153.67

  • Walvoil

    Walvoil - SD52001 - Control Slide 18-18L-AET

    Walvoil

    €171.76

  • Walvoil

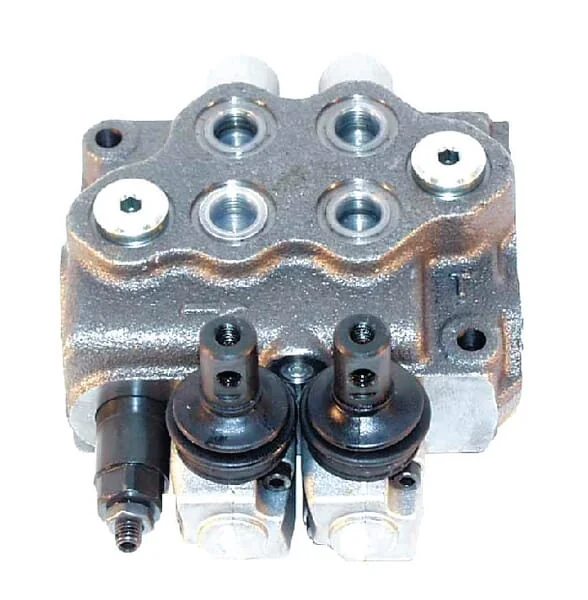

    Walvoil - SD52002 - Control Valve
