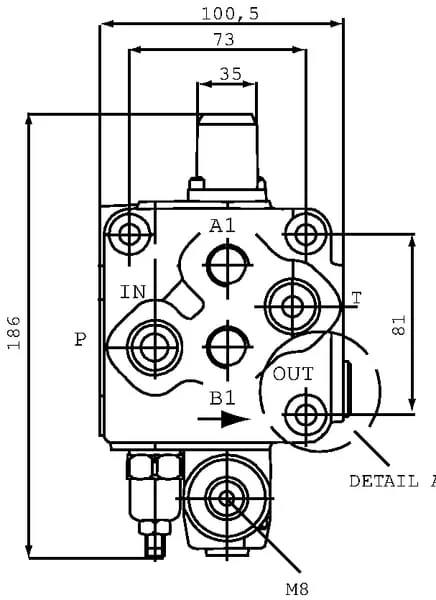

Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section
Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section
Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section
Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section
Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section
Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section

In stock - ready to ship

Order now for delivery between 13 July and 16 July
Free shipping

Pay Securely with

Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section

Walvoil - SD51007 - Walvoil Steering Valve 211L-AET, 1 Section

€121.98

(Excl. VAT)

Price

(Excl. VAT)

€121.98

Product Description

Main pressure relief valve and check valve in P-channel Max. operating pressure : parallel circuit type SD5/1--P (or N or D): 315 bar Max. operating pressure : series circuit type SD5/1--S : 250 bar Flow up to 45L/min. Maximum return pressure : 25 bar Plungers diameter 16mm with a stroke length of 37mm SD5/1--N : no possibility of carry-over SD5/1- D : possibility of carry-over
Walvoil
Walvoil, a leading Italian manufacturer of hydraulic components, was founded in 1973 in Reggio Emilia, Italy. The company has grown significantly over the decades, establishing itself as a key player in the global hydraulics market. Today, Walvoil operates as part of the Interpump Group, a world leader in high-pressure piston pumps and power take-offs, further strengthening its position in the industry. Walvoil specializes in the design and production of a comprehensive range of hydraulic valves, pumps, and complete hydraulic systems. Its product portfolio includes directional control valves, proportional valves, hydraulic remote controls, and gear pumps, which are integral to the operation of various mobile and industrial machinery. These components are engineered for precision, reliability, and efficiency, catering to demanding applications in agriculture, construction, and material handling. At Partao, you can find a wide selection of genuine Walvoil spare parts across top categories such as Hydraulic Seals, Bolts & Fasteners, Brackets & Supports, Control Consoles, and Control Modules. Over 11,006 genuine Walvoil spare parts are available at Partao. Operators across diverse sectors rely on Walvoil components for their robust performance and durability. The brand's commitment to innovation and quality ensures that its hydraulic solutions meet the rigorous demands of modern agricultural and industrial equipment, providing precise control and operational efficiency in challenging environments worldwide.

Product Details

Brand
Walvoil
Part Numbers
SD51007
Pros
Robust monoblock construction Many options and conversion possibilities, see pdf with order key
Unit
Each
Includes
Control valve Control lever not included
Extra info
1x double acting with fixed settings in all positions In neutral, A, B and T are connected (motor plunger)
Max. flow rate
45 l/min
Product details
Main pressure relief valve and check valve in P-channel Max. operating pressure : parallel circuit type SD5/1--P (or N or D): 315 bar Max. operating pressure : series circuit type SD5/1--S : 250 bar Flow up to 45L/min. Maximum return pressure : 25 bar Plungers diameter 16mm with a stroke length of 37mm SD5/1--N : no possibility of carry-over SD5/1- D : possibility of carry-over
Tank connection
3/8 Inch
Long description
Walvoil's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more
Sealing material
Nitrile rubber [NBR]
Spool positioning
11
Number of sections
1
Outlet port option
AET
Max working pressure
315 BAR
Pressure range relief valve
50-220 BAR
Workport A - Thread diamter
3/8 Inch
Workport B - Thread diamter
3/8 Inch
Pressure port thread diameter
3/8 Inch
Manufacturer
Walvoil

Similar items you might like

  • Walvoil

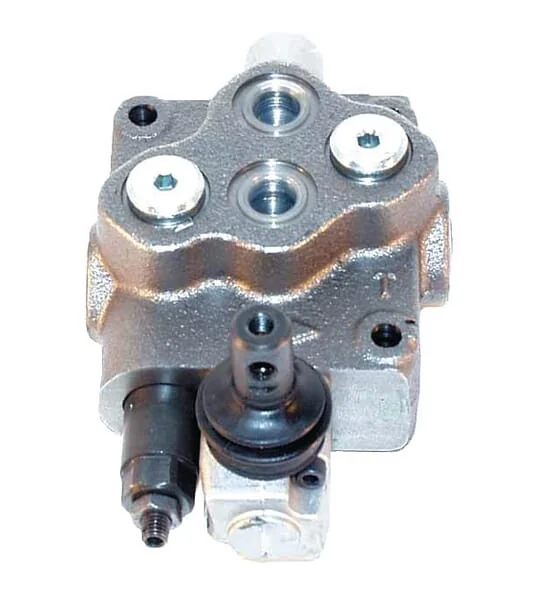

    Walvoil - SD51008 - Walvoil Steering Valve 38L-AET, 1 Section
