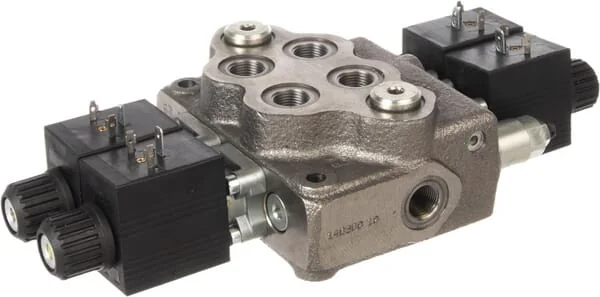

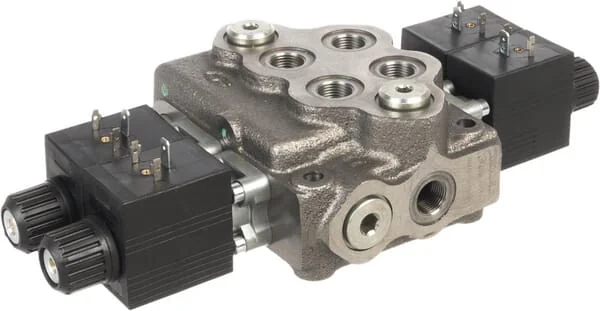

Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC
Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC
Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC
Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC

Walvoil - SD52016 - Control Valve SD5/2 2x18ES3/AET 12VDC

€287.27

(Excl. VAT)

Price

(Excl. VAT)

€287.27

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Pros
Robust monoblock construction Many options and conversion possibilities, see pdf with order key
Unit
Each
Includes
Control valve with coils
Extra info
1 - 8 1 - 8
Max. leakage
3 cm³/min
Spring range
50-220 BAR
Voltage type
DC
Max. flow rate
45 l/min
Supply voltage
12 V
Workports diameter
3/8 Inch
Max working pressure
315 BAR
Max. pressure on T port
25 BAR
Tank port thread diameter
3/8 Inch
Manufacturer
Walvoil
