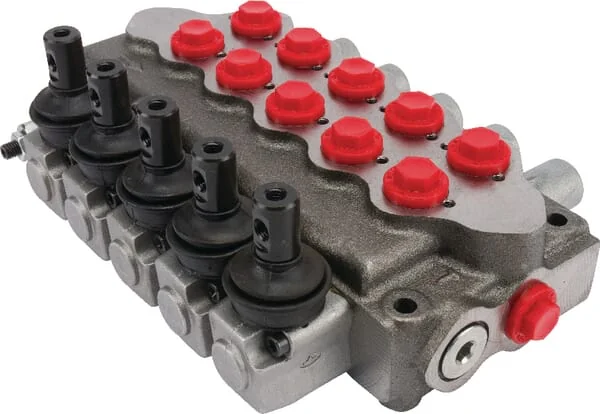

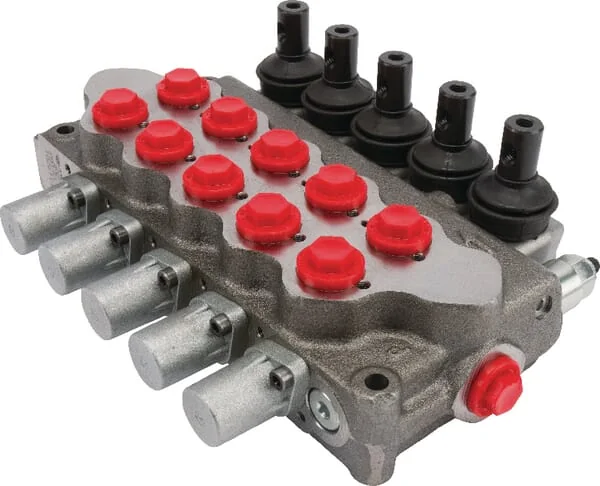

Walvoil - SD55002 - Walvoil Steering valve 5X28L AET BEW

OEM Quality

SKU: walvoil-sd55002

Walvoil - SD55002 - Walvoil Steering valve 5X28L AET BEW

€488.24€417.30 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€488.24

Brand
Walvoil
Part Numbers
SD55002
Pros
Robust monoblock construction Many options and conversion possibilities, see pdf with order key
Unit
Each
Includes
Control valve Control lever not included
Max. flow rate
45 l/min
Adjustment type
Socket screw
Product details
Main pressure relief valve and check valve in P-channel Maximum operating pressure : parallel circuit type SD5/5--P : 315 bar Flow up to 45L/min. Maximum return pressure : 25 bar Plungers diameter 16mm with a stroke length of 37mm
Long description
Walvoil's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more
Sealing material
Nitrile rubber [NBR]
Number of sections
5
Outlet port option
AET
Pressure range relief valve
120-220 BAR
Workport A - Thread diamter
3/8 Inch
Workport B - Thread diamter
3/8 Inch
Manufacturer
Walvoil

Walvoil's manual monoblock valves are designed for hydraulic applications with medium oil flow rates and pressures, especially in sectors such as agriculture, viticulture and municipal services. They are often used as control valves for cylinders and engines on trailers, log splitters and similar applications. Show more
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,091 genuine Walvoil spare parts.
