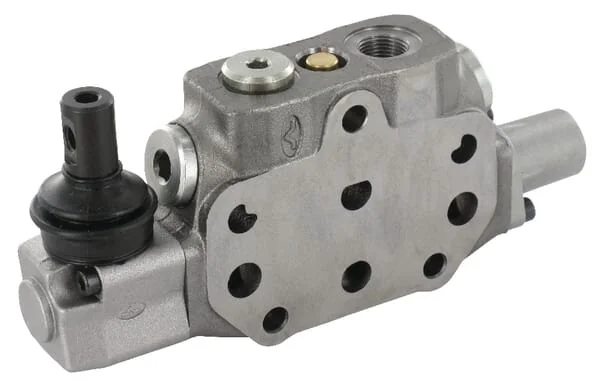

Walvoil - SD6138 - Walvoil Section SD6/1-38 parallel

OEM Quality

SKU: walvoil-sd6138

Walvoil - SD6138 - Walvoil Section SD6/1-38 parallel

€156.89€134.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€156.89

Brand
Walvoil
Part Numbers
SD6138
Type
EW, connection A active, spring centered
Unit
Each
Details
Segmented valves provide a very large range of options and possible combinations
Benefits
Best options for individual, custom control block design
Properties
Every work segment with non-return valve in P-channel Cartridge bores in A and B lines Available in parallel and series connection versions Various controls available, such as hydraulic, pneumatic or manual Flow control valves for integration
Consists of
Segment Control lever not included
Max. leakage
3 cm³/min
Max. flow rate
45 l/min
Technical info
A standard control block consists of one input and one output segment, 1-10 work segments, set of bolts Our sales department will be happy to assist you in the design of a complete block Customer-specific design possible
Sealing material
Nitrile rubber [NBR]
Application range
Hydraulic applications with medium oil quantities Forklifts Loading cranes Balers Mixing wagons
Spool positioning
3-8
Max working pressure
315 BAR
Return port thread diameter
1/2 Inch
Workport A - Thread diamter
3/8 Inch
Workport B - Thread diamter
3/8 Inch
Pressure port thread diameter
3/8 Inch
Manufacturer
Walvoil

Segmented valves provide a very large range of options and possible combinations
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,023 genuine Walvoil spare parts.
