Walvoil - SDM143 - Walvoil Control valve 143-2 P113SL/18MA

OEM Quality

SKU: walvoil-sdm143

Walvoil - SDM143 - Walvoil Control valve 143-2 P113SL/18MA

€479.30€409.66 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€479.30

Brand
Walvoil
Part Numbers
SDM143
Pros
Ideal for controlling front loaders Long life Front and rear oil connections Multifaster coupling can be directly flange-mounted on the valve using four couplings Can be converted to pressure continuation Every work segment with non-return valve in P-channel
Unit
Each

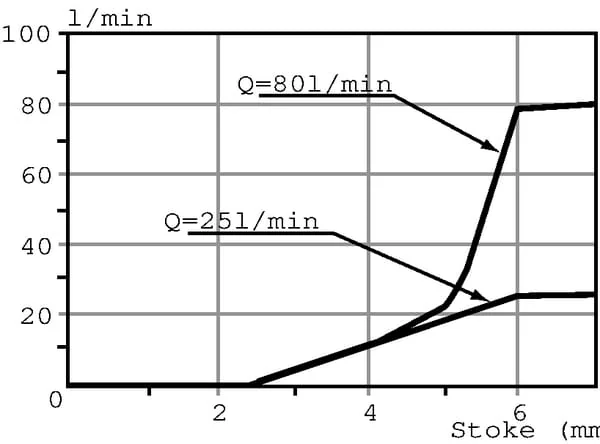

Flow rate
80 l/min
Extra info
The valve is equipped with a pressure control valve Each section is fitted with its own non-return valve 1st section float position spring return 2nd section double-acting spring return This control valve has a fixed configuration, plunger and plunger control changes are only available on request (different build size)
ATotal width
185 mm
Max. leakage
3 cm³/min
ATotal length
272 mm
Product details
1st segment, double-acting with additional floating position (1.5) 2nd segment, double-acting, spring centred (1.8) Bores for shock valves in A and B Parallel switching Operated using Bowden cable and cross switch lever
Long description
The SDM front loader control valve is a robust, compact and durable valve with two sections. Suitable for open and closed systems.
Sealing material
Nitrile rubber [NBR]
Spool positioning
1-8
Spool control type
1
Spool 2 positioning
5-13
Max working pressure
250 BAR
Spool 2 control type
5
Max return line pressure
10 BAR
Pressure range relief valve
80.0-210.0 BAR
TReturn port thread diameter
3/4 Inch
A1/A2/B1/B2Workports diameter
1/2 Inch
PPressure port thread diameter
3/4 Inch
Manufacturer
Walvoil

1st segment, double-acting with additional floating position (1.5) 2nd segment, double-acting, spring centred (1.8) Bores for shock valves in A and B Parallel switching Operated using Bowden cable and cross switch lever
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,091 genuine Walvoil spare parts.
