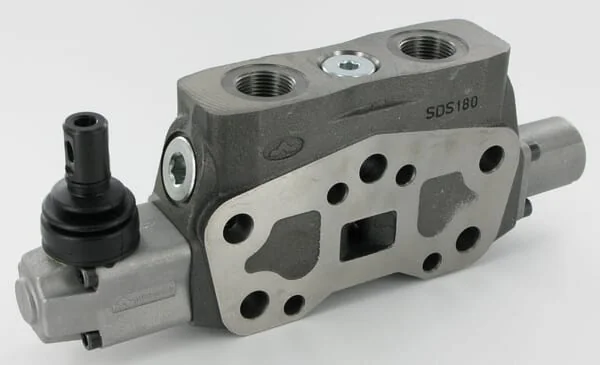

Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel
Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel
Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel
Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel

Walvoil - SDS180128 - Walvoil Section SDS180/1-28-P Parallel

€169.65

(Excl. VAT)

Price

(Excl. VAT)

€169.65

Product Description

Segmented valves provide a very large range of options and possible combinations
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Unit
Each
Details
Segmented valves provide a very large range of options and possible combinations
Benefits
Best options for individual, custom control block design
Properties
Every work segment with non-return valve in P-channel Cartridge bores in A and B lines Hydraulic, pneumatic or manual controls available Flow control valves for integration
Consists of
Segment Control lever not included
Max. leakage
3 cm³/min
Max. flow rate
160 l/min
Technical info
Individual components of the SD16 are compatible A standard control block consists of one input and one output segment, 1-6 work segments, set of bolts (type SD16) Our sales department will be happy to assist you in the design of a complete block Customer-specific design possible
Sealing material
Nitrile rubber [NBR]
Application range
Hydraulic applications with very large oil quantities Wheeled loaders Forklifts Loading cranes Forestry machines
Spool positioning
2-8
Max working pressure
315 BAR
Max return line pressure
25 BAR
Return port thread diameter
1 Inch
Workport A - Thread diamter
3/4 Inch
Workport B - Thread diamter
3/4 Inch
Pressure port thread diameter
3/4 Inch
Manufacturer
Walvoil
