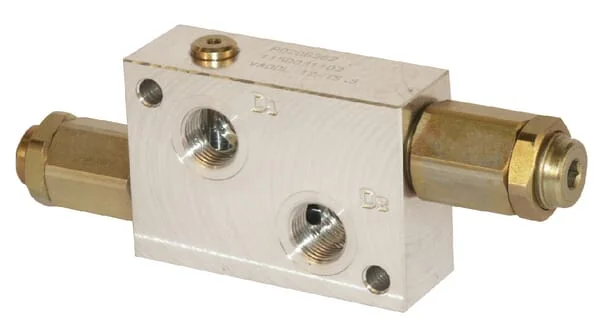

Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP
Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP
Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP
Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP
Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP
Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP

Walvoil - VADDL25001 - Relief Valve A16-SA 1" BSP 1 BSP

€218.40

(Excl. VAT)

Price

(Excl. VAT)

€218.40

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Type
Spring-loaded differential valve
Unit
Each
Housing height
100 mm
Max. flow rate
180 l/min
Technical info
Double-acting pressure relief valve protects a hydro motor against occurring pressure peaks as a result of external forces which can cause an abrupt stop or the direct reversal of the direction of rotation.
Adjustment type
Socket screw
BHousing length
110 mm
Connection type
Thread
Cartridge length
68,8 mm
Connections distance
110 mm
Max working pressure
210 BAR
Connection thread type
Inch
ZMounting holes diameter
8,5 mm
Adjustable pressure range
0-210 BAR
Connection thread diameter
1 Inch
Manufacturer
Walvoil
