Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S
Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S
Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S
Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S

Walvoil - VEP05001 - Unloading Valve VEP 38/TR-TV.S

€172.85

(Excl. VAT)

Price

(Excl. VAT)

€172.85

Product Description

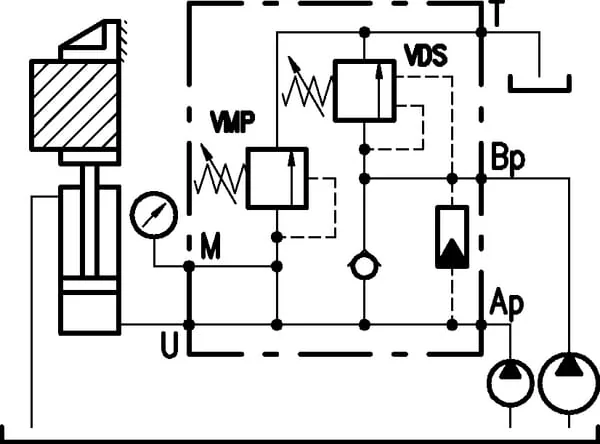

A stop valve or Hi-low valve is used, for example, in presses or log splitters that use two parallel pumps, one of which is a high-flow, low-pressure pump, and a second low-flow, high-pressure pump. Both pumps deliver their combined flows to the consumer until the set pressure value is reached. From then on, the large pump will be relieved to the tank and the small pump will deliver its flow at high pressure. Show more
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Pros
Low energy consumption Lower power demand Faster operations
Unit
Each
Includes
Housing Pressure relief valves (VMP + VDS) and one check valve.
Housing width
40 mm
Housing height
90 mm
Housing length
98 mm
Max. flow rate
25 l/min
Adjustment type
Socket screw
Connection type
Thread
Max working pressure
250 BAR
Connection thread type
BSP
Connection thread diameter
3/8 Inch1/4 Inch1 Inch
Connection 2, thread diameter
1/2 Inch
Connection 3, thread diameter
1/4 Inch
Manufacturer
Walvoil
