Home
Attachments & Lift
Hydraulic Systems
Hydraulic Control Valves

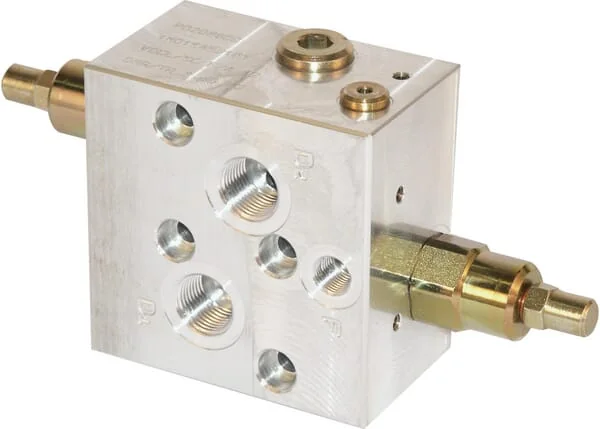

Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP
Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP
Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP
Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP
Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP
Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP

Walvoil - VODLSCAF20001 - Counterbalance A-08-OMT 3/4BSP

€519.19

(Excl. VAT)

Price

(Excl. VAT)

€519.19

Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Product Details

Brand
Walvoil
Unit
Each
Material
Aluminium
Extra info
Suitable for mounting on; OMT SMT
Pilot ratio
1:3.0
Total width
100 mm
Total height
130 mm
Total length
130 mm
Max flow rate
120 l/min
Technical info
Dual Counter balance valve with shuttle valve. The purpose of the shuttle valve is the operation of a (negative) multiple disc brake. Operation of this valve is influenced by the pressure in the return port (port D).
Sealing material
Buna-N
Primary application
Vehicle technology
Max working pressure
210 BAR
Max working temperature
90 °C
Min working temperature
-25 °C
Adjustable pressure range
50-350.0 BAR
Connections thread diameter
1/4 Inch
Manufacturer
Walvoil
