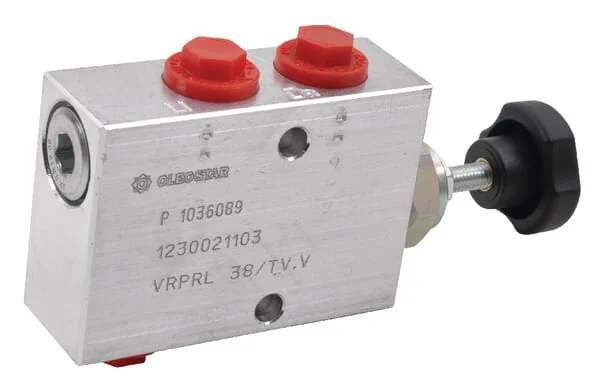

Walvoil - VRPRL05002 - Reducing Valve V B 3/8

OEM Quality

SKU: walvoil-vrprl05002

Walvoil - VRPRL05002 - Reducing Valve V B 3/8

€139.01

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€139.01

Reduced pressure at connection U. Area of application with high pressure and medium volume flow. Suitable for piping. Spring-loaded valve in aluminium housing To be used in double-acting systems. The leak connection DR must be connected to the tank or in a return pipe with absolutely no pressure. Type 002 is equipped with an adjustment knob
Walvoil
Walvoil designs and manufactures hydraulic components and systems for agricultural and industrial machinery. The brand specializes in valves, pumps, and steering units for tractors and off-road equipment. Its products ensure precise fluid control and reliability in heavy-duty farming operations. Shop more than 1,006 genuine Walvoil spare parts.

Brand
Walvoil
Part Numbers
vrprl05002
Pros
Ensures a constant. reduced pressure in the case of fluctuating system pressures. Output pressure is limited based on external peak loads.
Unit
Each
Total height
143,5 mm
Housing width
35 mm
Housing length
100 mm
Max. flow rate
20 l/min
Adjustment type
Hand wheel
Connection type
Thread
Product details
Reduced pressure at connection U. Area of application with high pressure and medium volume flow. Suitable for piping. Spring-loaded valve in aluminium housing To be used in double-acting systems. The leak connection DR must be connected to the tank or in a return pipe with absolutely no pressure. Type 002 is equipped with an adjustment knob
Cartridge length
43,5 mm
Housing material
Aluminium
Long description
PRMP Reducing valves have a precise pressure control and ensure constant, reduced pressure in the case of fluctuating system pressures.
Sealing material
Buna-N
Connection 2, type
Thread
Max working pressure
210 BAR
Connection thread type
Inch
Mounting holes diameter
8,5 mm
Adjustable pressure range
40-110 BAR
Connection 2, thread type
BSP
Connection thread diameter
3/8 Inch
Connection 2, thread diameter
3/8 Inch
Manufacturer
Walvoil
