Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage
Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage
Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage
Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage

Weber - TC4505WEB - Weber Telescopic Cylinder 4T 2-Stage

€556.32

(Excl. VAT)

Price

(Excl. VAT)

€556.32

Weber
Weber produces agricultural implements and attachments for soil preparation, seeding, and crop maintenance. The brand offers cultivators, harrows, and precision planting systems compatible with modern tractors. Its equipment is designed for efficiency in both small-scale and large-scale farming. Shop more than 66 genuine Weber spare parts.

Product Details

Brand
Weber
Unit
Each
Stroke
500 mm
Details
Primed surface, chrome-plated stepped tubes Standard grooved rings Polyurethane scraper
Benefits
High corrosion resistance A low lubricant film thickness Good scraping effect
Consists of
Cylinder Gimbal
Oil capacity
1,7 l
Technical info
For piston rods > 75mm, bleeding can be performed directly on the cylinder
Long description
Telescopic cylinders 2 Stage
Number of stages
2
Stage 1 diameter
45 mm
Stage 2 diameter
60 mm
Application range
Trailer tilt cylinder Vehicle construction

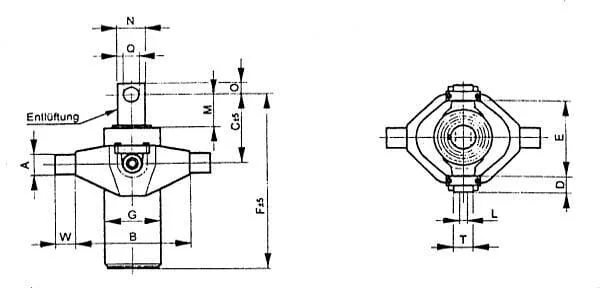

GOutside diameter
80 mm
Application category
Telescopic
BSide shaft diameter
152 mm
Max. working pressure
4 BAR
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
CMin. mounting holes distance
100 mm
Oil connection thread diameter
M16
Mounting hole to swivel tap distance
372 mm
QMounting hole diameter - rod connection
25,5 mm
OMounting hole center to rod end distance
20 mm
Mounting hole diameter - cylinder connection
25,5 mm
FMounting hole center to cylinder end distance
372 mm
Manufacturer
Weber
