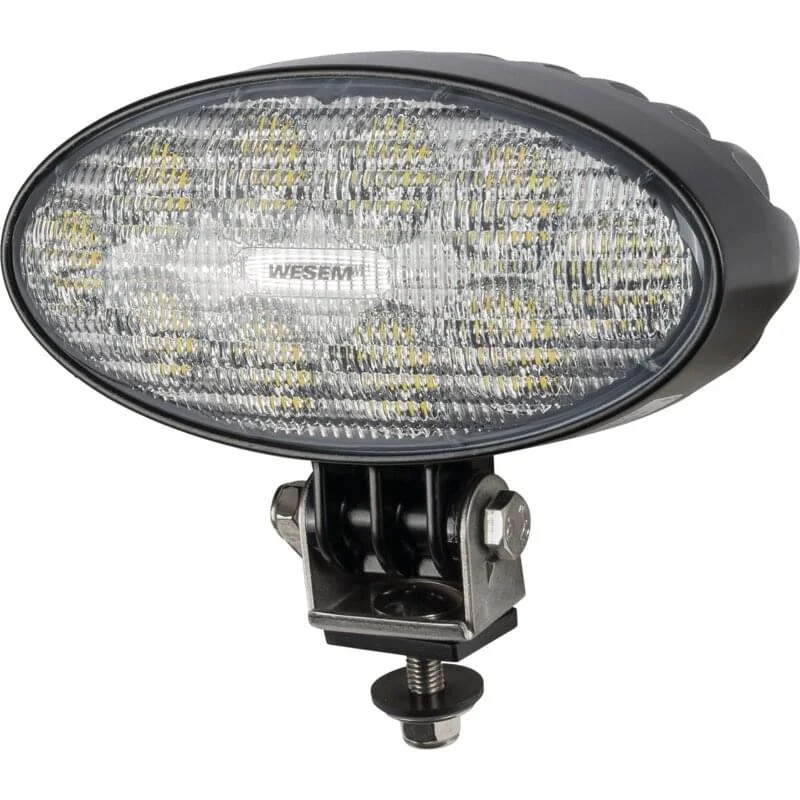

Wesem - CRV1G.53114 - Headlights

The lamps are used for illuminating areas around vehicles, tractors and slow-moving machinery, as well as for use in places where they can be supplied with the specified voltage. The lamps are compatible with Directive 2004/108/EC on electromagnetic compatibility. The lamps do not emit electromagnetic interference and are resistant to interference. Requires supply with appropriate polarization. Mounting: as free-standing on the body elements. Mounting hanging or standing possible. Mounting components are made of Inox steel. Light output: 3000 lm Maximum power: 35 W Nominal voltage: 12–24 V DC Permissible voltage: 10,5-30V DC Current at 13,2 V: 1,9 A Current at 28 V: 0,9 A Maximum current: 2,5 A Color temperature: 5500-6000K Spread: wide Beam angle: 60°x25° Sealing class: IP67, IP69K, IP66 Operating temperature: -40 °C to 80 °C Housing material: Aluminum Glass material: Material Corrosion resistance: ISO9227.500h Vibration resistance: 15,3G24 2000Hz EMC class CISPR25: IV III Built-in connector: Deutsch DT other: Protection against overheating, reverse polarity
