WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"
WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"
WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"
WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"

WEY - DN200VGC - Knife Valve Sq. Flg Pneumatic DN 8"

€1,685.26

(Excl. VAT)

Price

(Excl. VAT)

€1,685.26

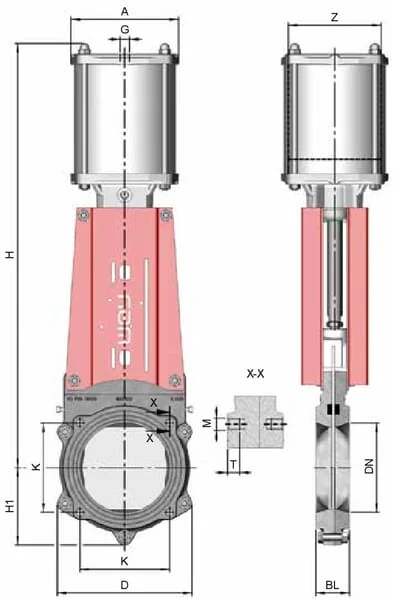

Product Details

Brand
WEY
Unit
Each
BLFlange thickness
60 mm
Max working pressure
2,5 BAR
ACylinder total width
180 mm
DFlange outside diameter
308 mm
ZCylinder outside diameter
160 mm
DNPassage hole nominal diameter
8 Inch
GCylinder mounting thread diameter
1/4 Inch
KFlange mounting bolts/holes distance
180 mm
H1Passage hole centre to bottom distance
156 mm
HPassage hole centre to lever end distance
826 mm
MFlange mounting bolts/holes thread diameter
M12
Manufacturer
WEY
