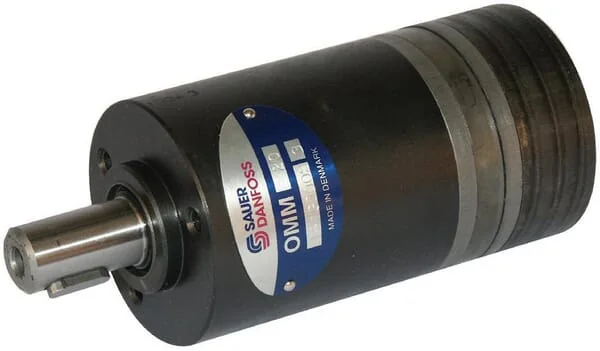

White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back
White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back
White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back
White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back
White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back
White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back

White - OMM20151G0002 - Orbit Motor, Shaft Diameter 16 Back

€184.83

(Excl. VAT)

Price

(Excl. VAT)

€184.83

Product Description

Suitable for continuous operation at medium pressure or short-term operation at high pressure Robust and compact design Refer to technical information on maximum radial and axial loads Belongs to the series of small orbit motors
White

Product Details

Brand
White
Pros
Available with rear or side connections A variety of shaft designs are available
Unit
Each
Max. power
2,4 kW
Shaft type
Straight parallel
Displacement
20 cm³/rev
Rotor length
8,5 mm
Sealing type
Standard
Max. flow rate
20 l/min
Shaft diameter
16 mm
LHousing length
112,5 mm
Max pressure peak
200 BAR
Shaft thread type
Metric
Max rotation speed
1000 r/min
Min rotation speed
30 r/min
Main port thread type
G
Max continuous torque
25 N·m
Shaft thread diameter
M6
Drain port thread type
G
Number of mounting holes
3
Main port thread diameter
3/8 Inch
Drain port thread diameter
1/8 Inch
Max. continous working pressure
100 BAR
Max intermittend working pressure
140 BAR
