Home
Attachments & Lift
Hydraulic Systems
Other Hydraulics Parts

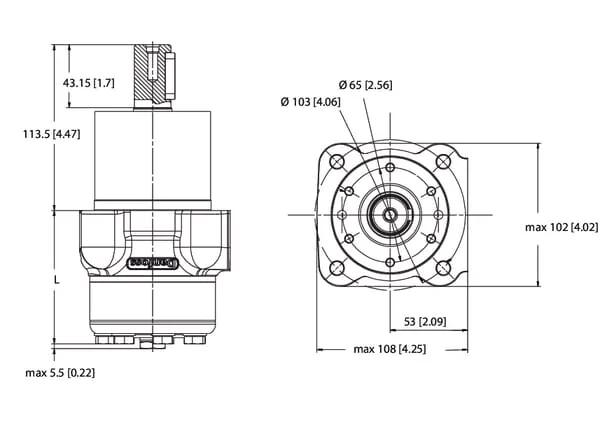

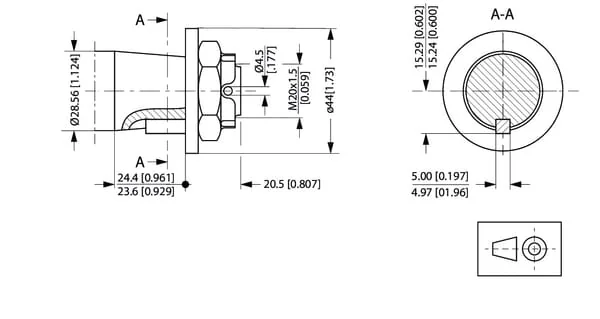

White - OMPWX16011185882 - Orbit Wheel Motor
White - OMPWX16011185882 - Orbit Wheel Motor
White - OMPWX16011185882 - Orbit Wheel Motor
White - OMPWX16011185882 - Orbit Wheel Motor
White - OMPWX16011185882 - Orbit Wheel Motor
White - OMPWX16011185882 - Orbit Wheel Motor
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

White - OMPWX16011185882 - Orbit Wheel Motor

White - OMPWX16011185882 - Orbit Wheel Motor

€444.42

(Excl. VAT)

Price

(Excl. VAT)

€444.42

Product Description

Robust and compact construction Shaft has a very high radial load capacity
White

Product Details

Brand
White
Unit
Each
Benefits
Low space requirement Reliable
Max. power
11,2 kW
Properties
High starting torque With leak oil outlet Rotor design Wide shaft slip bearing Recessed flange mounting
Shaft type
Tapered
Displacement
160 cm³/rev
Flange shape
Wheel
Sealing type
High pressure
Port position
Side
Housing length
87,7 mm
Max. flow rate
60 l/min
Shaft diameter
28,5 mm
Technical info
Option of direct wheel hub mounting
Flange diameter
103 mm
Application range
Wheel and winch drives Suitable for continuous operation at medium pressure or short-term operation at high pressure
Max rotation speed
385 r/min
Min. starting torque
320 N·m
Main port thread type
G
Max continuous torque
335 N·m
Drain port thread type
G
Min. starting pressure
7 BAR
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Mounting holes circle diameter
80 mm
Max. continous working pressure
160 BAR
Manufacturer
White
