White - OMPX5011186742 - Orbit Motor, Shaft 25, Needle

SKU: white-ompx5011186742

White - OMPX5011186742 - Orbit Motor, Shaft 25, Needle

€348.65

(excl. VAT)
RRP:€414.94
Save €66.31

In stock - ready to ship

Ships within 96 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€348.65

White
White is a brand with a significant history in American agriculture, primarily known for its tractors and farm equipment. The brand's origins trace back to the early 20th century, and it has undergone various transformations and mergers over the years, becoming a part of larger agricultural machinery groups. While its independent production has evolved, the legacy of White equipment remains. Historically, White produced a range of agricultural machinery, including tractors, planters, and tillage equipment. The brand was recognized for its innovative designs and robust construction, aiming to provide efficient and reliable solutions for farmers. Specific models like the White Field Boss series were well-regarded for their performance and durability in various farming operations. Partao offers a selection of genuine White spare parts, covering essential components such as Bolts & Fasteners, Drive Shafts, Hydraulic Seals, Needle Bearings, and Other Hydraulics Parts. Over 222 genuine White spare parts are available at Partao. Operators of classic and contemporary White machinery often seek out genuine parts to maintain the performance and extend the lifespan of their equipment. The brand's enduring presence in the agricultural sector, particularly in North America, means that its parts continue to be essential for keeping these reliable machines running efficiently on farms.

Brand
Unit
Each
Benefits
Flexible
Max. power
9,8 kW
Properties
Robust and compact construction High axial and radial load carrying capacity of the axle High starting torque Pressure drop: P1 = operating pressure continuous, P2 = operating pressure intermittent
Shaft type
Cylindrical
Flange code
A2
Displacement
50 cm³/rev
Flange shape
Oval
Sealing type
High pressure
Port position
Side

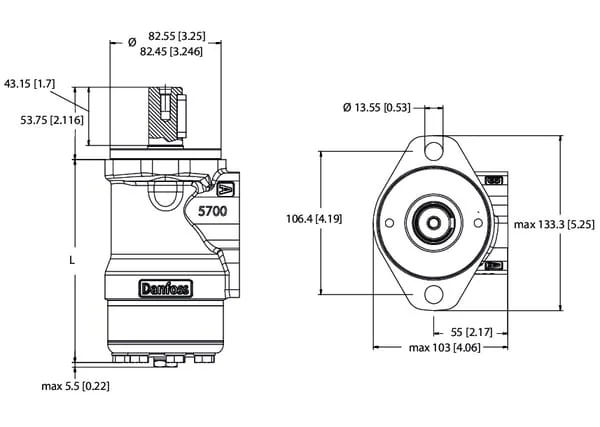

Housing length
133,2 mm
Max. flow rate
60 l/min
Shaft diameter
25 mm
Technical info
Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application.
Flange diameter
82,5 mm
Application range
Wherever high torque and low speeds are required, e.g. for sweeping brushes, loader wagons, chain drives, spreaders, lawnmowers, winches, agricultural machinery, forestry machinery and construction machinery
Max rotation speed
1230 r/min
Min. starting torque
90 N·m
Main port thread type
G
Max continuous torque
110 N·m
Drain port thread type
G
Min. starting pressure
10 BAR
Number of mounting holes
2
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Mounting holes circle diameter
106,4 mm
Max. continous working pressure
160 BAR
Max intermittend working pressure
200 BAR
Manufacturer
White
