Home
Attachments & Lift
Hydraulic Systems
Other Hydraulics Parts

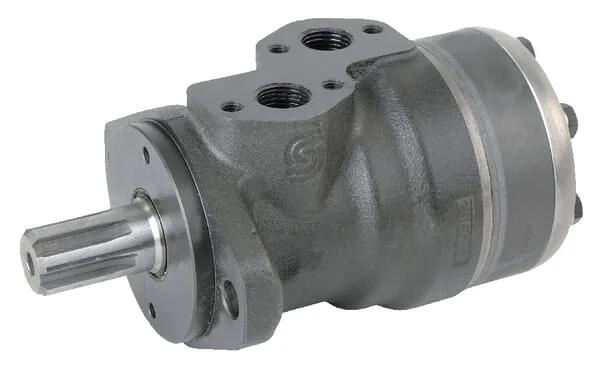

White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD

White - OMR3751510428 - Orbit Motor, Shaft 1" Z6, WHD

€382.80

(Excl. VAT)

Price

(Excl. VAT)

€382.80

Product Details

Brand
White
Unit
Each
Benefits
Well suited for frequent reversing operations Highly efficient High continuous pressure Long service life
Max. power
4 kW
Shaft type
Splined
Flange code
SAE-A
Displacement
315 cm³/rev
Flange shape
Oval
Sealing type
High pressure
L1Rotor length
54,8 mm
Max. flow rate
60 l/min
Shaft diameter
25,4 mm
Technical info
Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application.
LHousing length
191,7 mm
Application range
Wherever high torque and low rotational speeds are required, e.g.: Spreaders Loader wagons Scraper floor drives Augers Balers Winches Communal/agricultural/forestry/construction machines
Max pressure peak
130 BAR
Max rotation speed
160 r/min
Min rotation speed
5 r/min
Main port thread type
G
Max continuous torque
360 N·m
Shaft number of teeth
6
Number of mounting holes
2
Main port thread diameter
1/2 Inch
Max. continous working pressure
55 BAR
Max intermittend working pressure
85 BAR
Manufacturer
White
