White - OMRX31511185564 - Orbit Motor, Shaft Diameter 1" Z6 A2

SKU: white-omrx31511185564

White - OMRX31511185564 - Orbit Motor, Shaft Diameter 1" Z6 A2

€394.64

(excl. VAT)
RRP:€469.98
Save €75.34

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€394.64

Flexibility thanks to a variety of shaft and flange combinations
White
White is a brand with a significant history in American agriculture, primarily known for its tractors and farm equipment. The brand's origins trace back to the early 20th century, and it has undergone various transformations and mergers over the years, becoming a part of larger agricultural machinery groups. While its independent production has evolved, the legacy of White equipment remains. Historically, White produced a range of agricultural machinery, including tractors, planters, and tillage equipment. The brand was recognized for its innovative designs and robust construction, aiming to provide efficient and reliable solutions for farmers. Specific models like the White Field Boss series were well-regarded for their performance and durability in various farming operations. Partao offers a selection of genuine White spare parts, covering essential components such as Bolts & Fasteners, Drive Shafts, Hydraulic Seals, Needle Bearings, and Other Hydraulics Parts. Over 222 genuine White spare parts are available at Partao. Operators of classic and contemporary White machinery often seek out genuine parts to maintain the performance and extend the lifespan of their equipment. The brand's enduring presence in the agricultural sector, particularly in North America, means that its parts continue to be essential for keeping these reliable machines running efficiently on farms.

Brand
Unit
Each
Benefits
Well suited for frequent reversing operations Highly efficient High continuous pressure Long service life
Max. power
7 kW
Shaft type
Splined
Flange code
A2
Displacement
315 cm³/rev
Flange shape
Oval
Sealing type
High pressure
Port position
Side
Housing length
172,3 mm
Max. flow rate
60 l/min

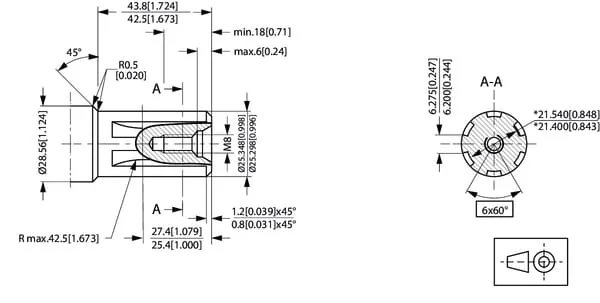

Shaft diameter
1 Inch
Technical info
With leak oil outlet Roller design Wide shaft slip bearing Can be connected in series with other engines Suitable for use in closed systems Belongs to the series of medium-sized orbit motors
Flange diameter
106,4 mm
Application range
Wherever high torque and low rotational speeds are required, e.g.: Spreaders Loader wagons Bottom chain drives Augers Balers Winches Communal/agricultural/forestry/construction machines
Max rotation speed
195 r/min
Min. starting torque
370 N·m
Main port thread type
G
Max continuous torque
400 N·m
Drain port thread type
G
Min. starting pressure
7 BAR
Number of mounting holes
2
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Mounting holes circle diameter
82,5 mm
Max. continous working pressure
100 BAR
Max intermittend working pressure
140 BAR
Manufacturer
White
