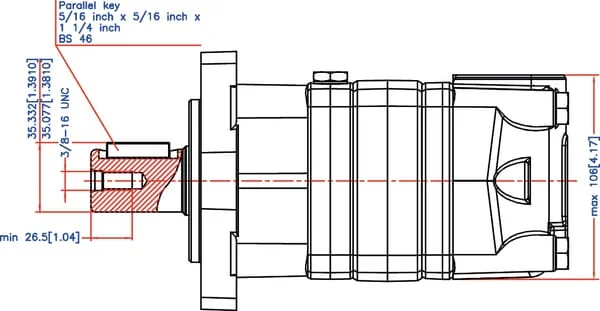

White - OMS100151F2201 - Orbit Motor Oms100
White - OMS100151F2201 - Orbit Motor Oms100
White - OMS100151F2201 - Orbit Motor Oms100
White - OMS100151F2201 - Orbit Motor Oms100
White - OMS100151F2201 - Orbit Motor Oms100
White - OMS100151F2201 - Orbit Motor Oms100

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping

Pay Securely with

White - OMS100151F2201 - Orbit Motor Oms100

White - OMS100151F2201 - Orbit Motor Oms100

€616.28

(Excl. VAT)

Price

(Excl. VAT)

€616.28

Product Description

Particularly suitable for continuous use in tough conditions High continuous operating pressure Very consistent operation at low speeds Frequent reversing possible High efficiency Excellent start-up properties Very high permissible radial load on the shaft is possible
White

Product Details

Brand
White
Unit
Each
Max. power
18 kW
Shaft type
Straight parallel
Displacement
100 cm³/rev
Flange shape
Standard
Sealing type
Standard
Housing length
171,8 mm
Max. flow rate
75 l/min
Shaft diameter
31,8 mm
Max pressure peak
295 BAR
Max rotation speed
750 r/min
Min rotation speed
10 r/min
Main port thread type
UNF
Max continuous torque
305 N·m
Drain port thread type
UNF
Number of mounting holes
4
Main port thread diameter
7/8 Inch
Drain port thread diameter
7/16 Inch
Main port threads per inch
14
Drain port threads per inch
20
Max. continous working pressure
210 BAR
Max intermittend working pressure
275 BAR
Main port center to front flange distance
127,5 mm
Main second port center to front flange distance
149,5 mm
Manufacturer
White
