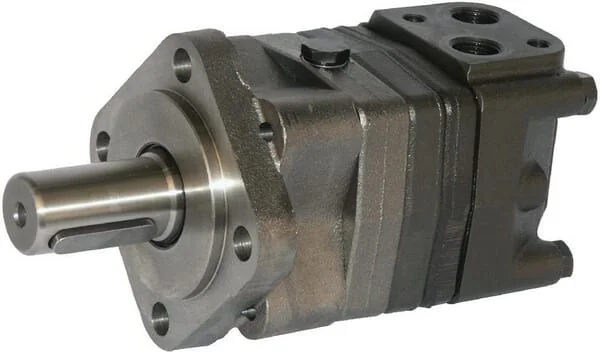

White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard
White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard
White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard
White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard
White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard
White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard

White - OMS250151F0505 - Orbit Motor, Shaft Diameter 32, Standard

€555.13

(Excl. VAT)

Price

(Excl. VAT)

€555.13

Product Description

Particularly suitable for continuous use in tough conditions High continuous operating pressure Very consistent operation at low speeds Frequent reversing possible High efficiency Excellent start-up properties Very high permissible radial load on the shaft is possible
White

Product Details

Brand
White
Unit
Each
Max. power
14,5 kW
Shaft type
Straight parallel
Displacement
250 cm³/rev
Flange shape
Standard
Sealing type
Standard
Housing length
197,9 mm
Max. flow rate
75 l/min
Shaft diameter
32 mm
Max pressure peak
270 BAR
Max rotation speed
300 r/min
Min rotation speed
6 r/min
Main port thread type
G
Max continuous torque
720 N·m
Drain port thread type
G
Number of mounting holes
4
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Max. continous working pressure
200 BAR
Max intermittend working pressure
250 BAR
Main port center to front flange distance
153,6 mm
Main second port center to front flange distance
175,6 mm
Manufacturer
