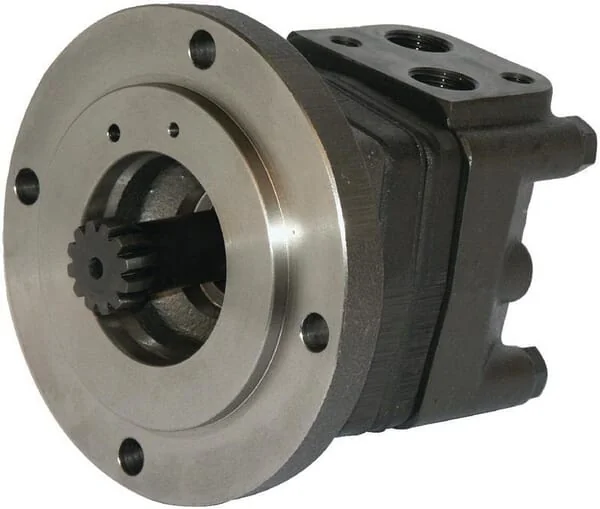

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

Number of products

In stock - ready to ship

Order now for delivery between 23 May and 27 May

Free shipping

Pay Securely with

White - OMSS100151F0536 - Short Orbit Motor

White - OMSS100151F0536 - Short Orbit Motor

€494.86

(Excl. VAT)

Price

(Excl. VAT)

€494.86

Number of products

Product Description

Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque.

White

Product Details

Brand

Pros

Very short design Particularly suitable for continuous use in tough conditions High continuous operating pressure Very smooth running at low speeds Frequent reversing possible High efficiency Excellent start-up properties

Unit

Each

Max. power

18 kW

Shaft type

Splined

Displacement

100 cm³/rev

Flange shape

Short

Rotor length

17,4 mm

Max. flow rate

75 l/min

Shaft diameter

27,6 mm

LHousing length

128 mm

Max pressure peak

295 BAR

Max rotation speed

750 r/min

Min rotation speed

10 r/min

Main port thread type

G

Max continuous torque

305 N·m

Shaft number of teeth

12

Drain port thread type

G

Number of mounting holes

4

Main port thread diameter

1/2 Inch

Drain port thread diameter

1/4 Inch

Max. continous working pressure

210 BAR

Max intermittend working pressure

275 BAR

Manufacturer

White
