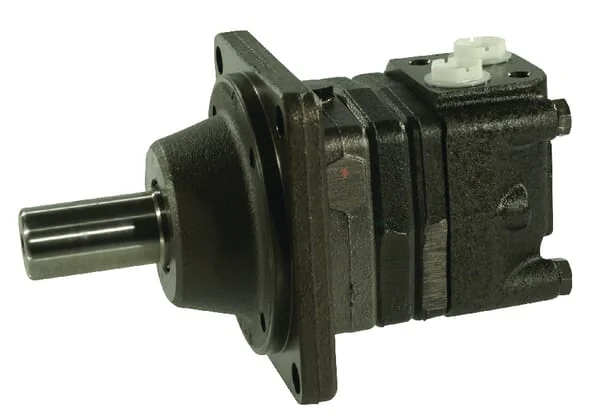

White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel
White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel
White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel
White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel
White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel
White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel

White - OMSW315151F0527 - Wheel Motor, Shaft Diameter 32 Parallel

€781.18

(Excl. VAT)

Price

(Excl. VAT)

€781.18

Product Details

Brand
White
Unit
Each
Max. power
15 kW
Shaft type
Straight parallel
Displacement
315 cm³/rev
Flange shape
Wheel
Sealing type
Standard
L1Rotor length
54,8 mm
Max. flow rate
75 l/min
Shaft diameter
32 mm
Technical info
Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application.
LHousing length
170 mm
Application range
Wheel and winch drives
Max pressure peak
260 BAR
Max rotation speed
240 r/min
Min rotation speed
5 r/min
Main port thread type
G
Max continuous torque
825 N·m
Drain port thread type
G
Number of mounting holes
4
Main port thread diameter
1/2 Inch
Drain port thread diameter
1/4 Inch
Max. continous working pressure
200 BAR
Max intermittend working pressure
240 BAR
