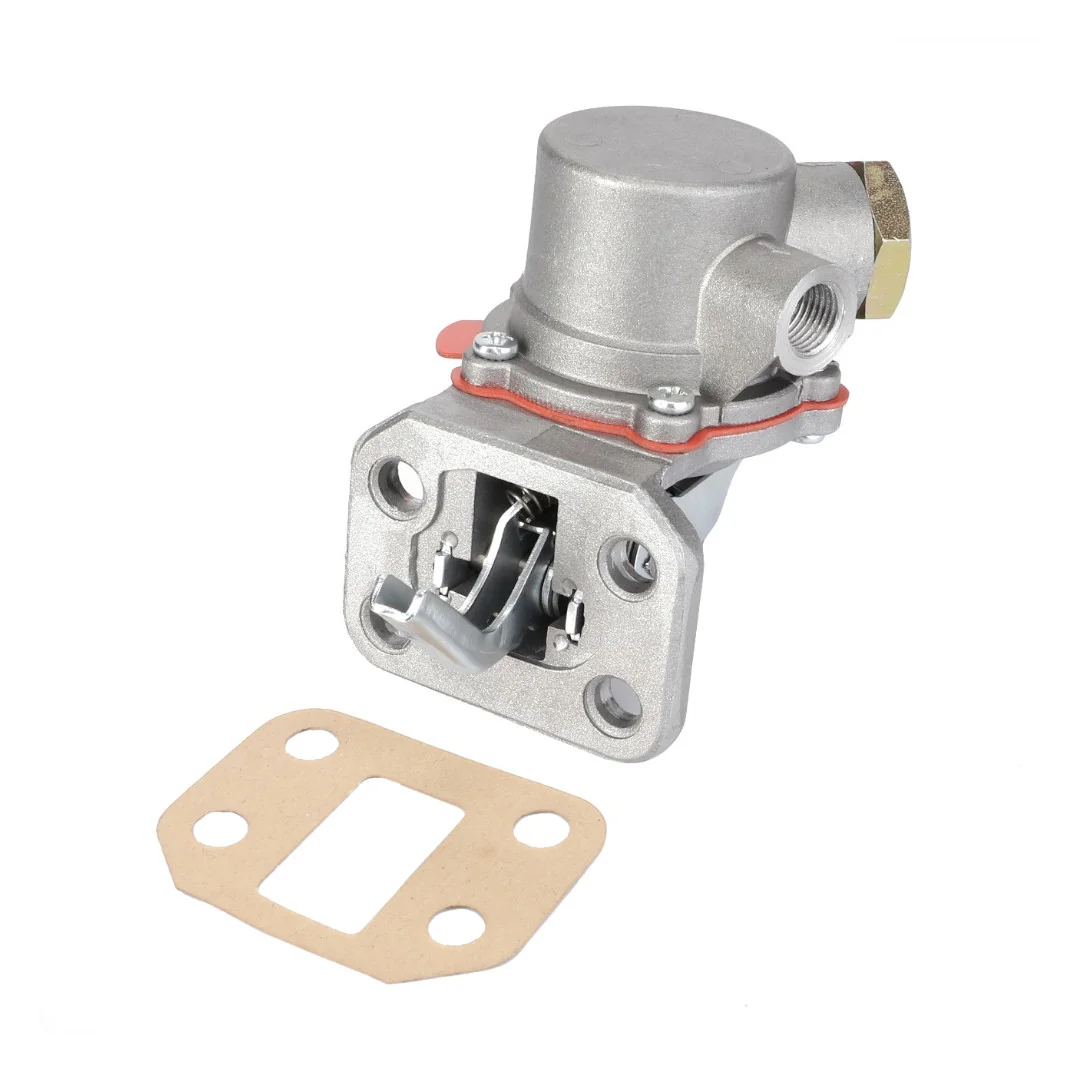

AGCO - 4224451M91 - Massey Ferguson  Feed Pump
AGCO - 4224451M91 - Massey Ferguson  Feed Pump
AGCO - 4224451M91 - Massey Ferguson  Feed Pump
AGCO - 4224451M91 - Massey Ferguson  Feed Pump
AGCO - 4224451M91 - Massey Ferguson  Feed Pump
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

AGCO - 4224451M91 - Massey Ferguson  Feed Pump

AGCO - 4224451M91 - Massey Ferguson Feed Pump

€42.22

(Excl. VAT)

Price

(Excl. VAT)

€42.22

Product Description

This fuel feed pump draws diesel from the tank and delivers it to the injection pump at the required pressure. It is mounted on the engine block and driven by the camshaft; a lever inside the pump follows the cam lobe to create the pumping stroke. A worn pump produces hard starting, low power, or erratic idle because the injection pump cannot maintain the correct inlet pressure. The original AGCO pump uses the same flange geometry and lever position as the factory assembly, so no adapter or bracket modification is needed. On installation, ensure the lever aligns with the cam lobe and that the mounting gasket is replaced to prevent air ingress.
AGCO
AGCO Corporation is a global leader in the design, manufacture, and distribution of agricultural machinery and precision ag technology. Founded in 1990 and headquartered in Duluth, Georgia, USA, AGCO has grown through strategic acquisitions to become a major force in the agricultural equipment industry. The company operates a portfolio of well-known brands, serving farmers worldwide. AGCO's extensive product range includes tractors, combines, hay tools, sprayers, forage equipment, and implements. Its brands are recognized for innovation and reliability, with popular series such as the Fendt Vario tractors, Massey Ferguson Global Series, and Valtra T Series. The company is committed to developing advanced agricultural solutions that enhance productivity and sustainability for modern farming operations. Partao offers a wide selection of AGCO spare parts, including Fuel Caps, Other Harvesting Parts, O-Rings, Other Axles and Steering Parts, and Other Cab, Body & Steering Parts. These components are crucial for maintaining the performance and longevity of AGCO machinery. Over 810,239 genuine AGCO spare parts are available at Partao. Farmers and agricultural businesses globally rely on AGCO's diverse product offerings for their operations, from small-scale farms to large commercial enterprises. The company's strong dealer network ensures readily available parts and service, supporting the continuous operation of its machinery in various agricultural settings, including row-crop farming, livestock operations, and specialty crop production.

Product Details

Brand
AGCO
Fits

Massey ferguson

33153325333033403350335542254235424042454255432543354345435543656235624562556265892589268937
Location
Fuel system
Application
Tractors and vehicles
Product Type
Feed pump
Number Of Holes
4
Flange To Lever End
34 mm
Hole Spacing Vertical
25 mm
Hole Spacing Horizontal
44 mm
Manufacturer
AGCO

Similar items you might like

  • AGCO

    AGCO - 4224629M1 - Massey Ferguson Timing Cover Gasket

    AGCO

    €59.82

  • AGCO

    AGCO - 4224634M1 - Timing Cover Gasket Massey Ferguson

    AGCO

    €52.30

  • AGCO

    AGCO - 4224675M91 - Water Pump Repair Kit Massey Ferguson

    AGCO

    €158.75

  • AGCO

    AGCO - 4224678M1 - Timing Housing Gasket Massey Ferguson

    AGCO

    €20.31

  • AGCO

    AGCO - 4224701M2 - Fuel Filter With Water Separator Massey Ferguson

    AGCO

    €33.57

  • AGCO

    AGCO - 4224702M1 - Valve Cover Gasket Massey Ferguson

    AGCO

    €37.62

  • AGCO

    AGCO - 4224708M91 - Water Pump Massey Ferguson

    AGCO

    €210.27

  • AGCO

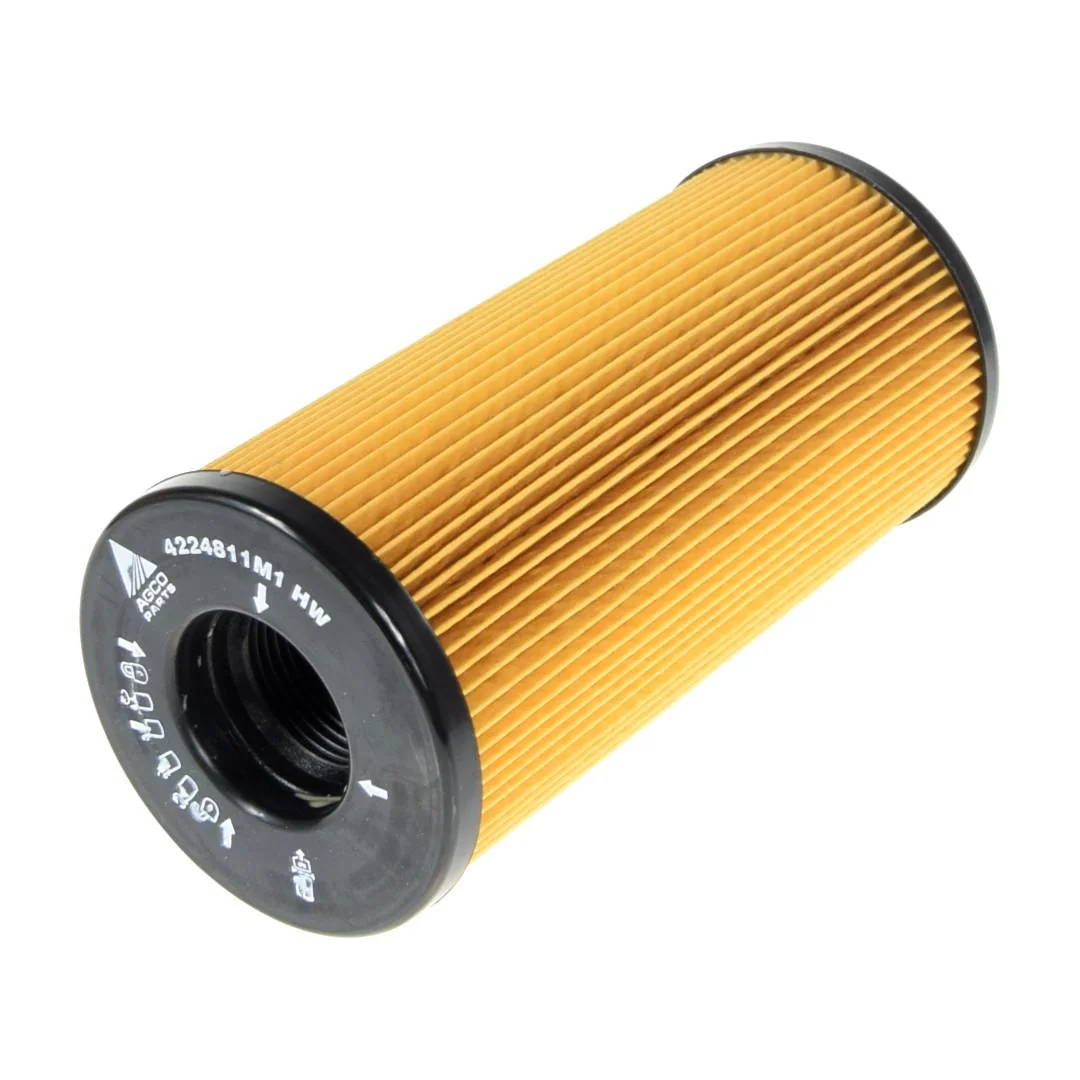

    AGCO - 4224811M1 - Engine Fuel Filter Massey Ferguson
