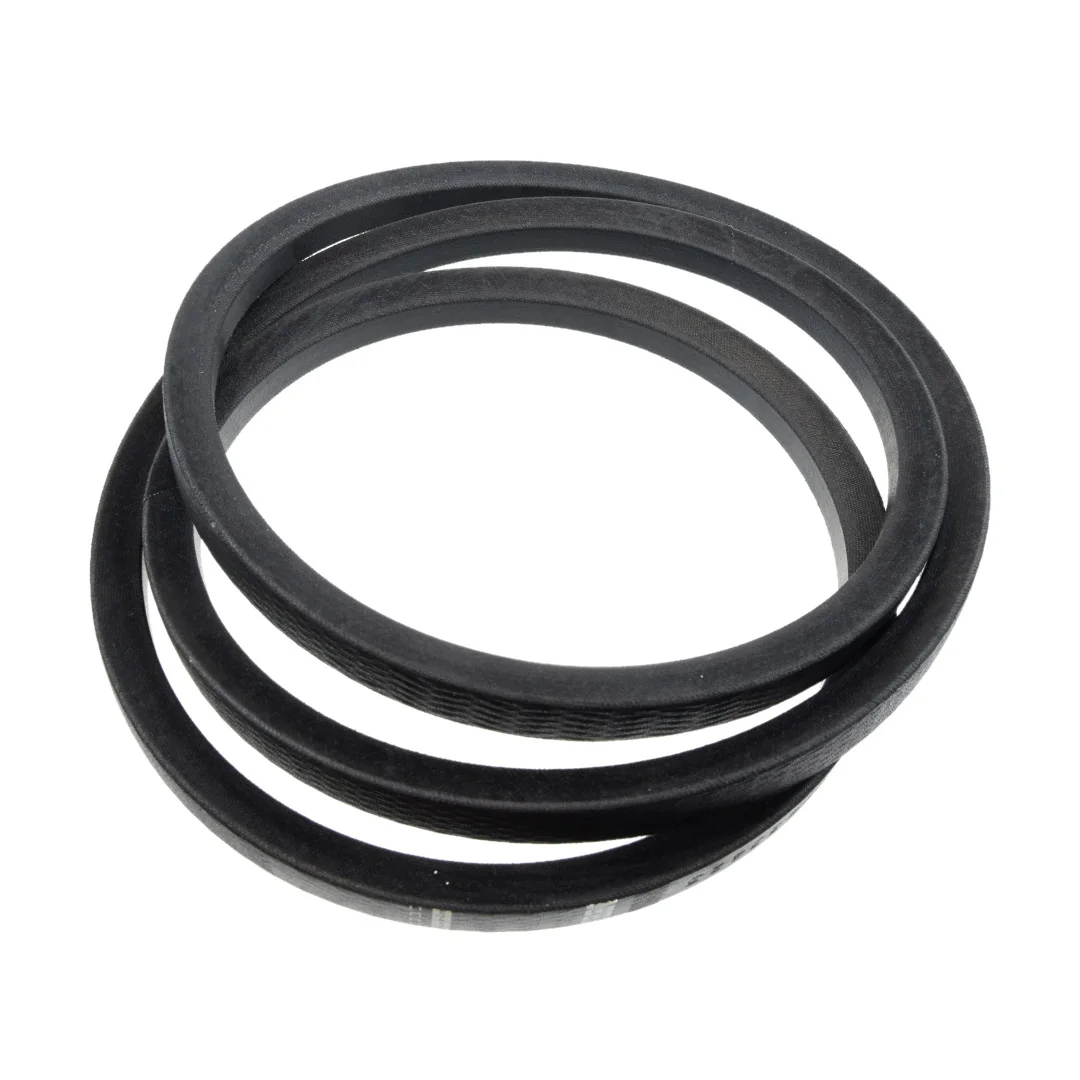

AGCO - LA340433423 - V-Belt Massey Ferguson
AGCO - LA340433423 - V-Belt Massey Ferguson
AGCO - LA340433423 - V-Belt Massey Ferguson
AGCO - LA340433423 - V-Belt Massey Ferguson

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

AGCO - LA340433423 - V-Belt Massey Ferguson

AGCO - LA340433423 - V-Belt Massey Ferguson

€37.27

(Excl. VAT)

Price

(Excl. VAT)

€37.27

Product Description

This V-belt transmits power from the drive pulley to the driven pulley in the combine's drive system. It sits in a single-groove pulley set and transfers torque to the auxiliary components it drives. A worn or stretched belt slips under load, reducing the rotational speed of the driven components and causing a loss of function. As an original-manufacturer part, the belt is molded to the same cross-section and pitch length as the original assembly, so it seats fully in the pulley groove without requiring shimming or tensioner adjustment. On installation, verify the belt is not twisted and that the tensioner is set to the specified deflection.
AGCO

Product Details

Brand
AGCO
Fits

Claas

Compact 20Compact 25Compact 30

Fendt

MF L
Width
22 mm
Height
14 mm
Location
Drive system
Product Type
V-belt
Number Of Ribs
1
Pitch Length (Lp)
2400 mm
Inside Length (Li)
2350 mm
Outside Length (La)
2424 mm
Manufacturer
AGCO
