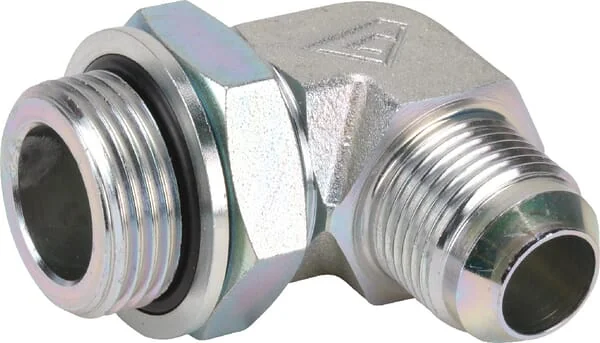

Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP
Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP
Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP
Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP

In stock - ready to ship

Order now for delivery between 9 April and 13 April
Free shipping on orders over €60

Pay Securely with

Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP

Alfagomma - KIB0908 - Elbow Coupling 9/16 JIC x 1/2 BSP

€8.88

(Excl. VAT)

Price

(Excl. VAT)

€8.88

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Material
Steel
Cone angle
74 °
Pipe diameter
3/8 Inch
Technical info
For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Surface treatment
Galvanised
Connection 2, type
Thread
Connection no 1 type
Thread
Max working pressure
380 BAR
L1Connections distance
43,5 mm
Connection 2, thread type
JIC
Connection no 1 thread type
BSP
Connection 2, threads per inch
18
F2Connection 2, thread diameter
1/2 Inch
Connection 2, type - male/female
Male
Connection no 1 threads per inch
14
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 type - male/female
Male
Connection no 1 center to end distance
31 mm
Manufacturer
Alfagomma
