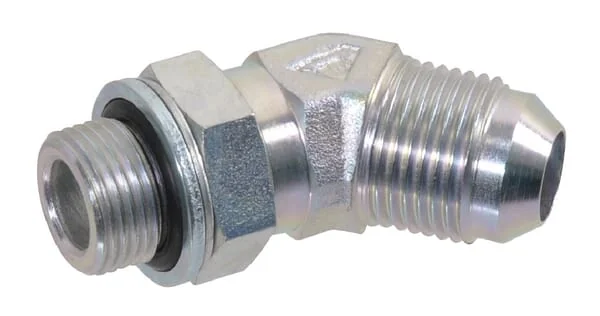

Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°
Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°
Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°
Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°

Alfagomma - KIB450906 - Elbow 9/16 JIC x 3/8 BSP 45°

€4.95

(Excl. VAT)

Price

(Excl. VAT)

€4.95

Product Description

For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Pipe diameter
3/8 Inch
Connection 2, type
Thread
Connection no 1 type
Thread
Connections distance
33 mm
Max working pressure
380 BAR
Connection 2, diameter
3/8 Inch
Connection 2, thread type
BSP
Connection no 1 thread type
JIC
Connection 2, thread diameter
3/8 Inch
Connection 2, threads per inch
19
Connection 2, type - male/female
Male
Connection no 1 threads per inch
18
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
22 mm
Manufacturer
Alfagomma
