ALFAGOMMA - PA161490L - 5/8-7/8 JIC BI.DR.PRESS FITTING 90 LONG

SKU: alfagomma-pa161490l

ALFAGOMMA - PA161490L - 5/8-7/8 JIC BI.DR.PRESS FITTING 90 LONG

€12.04€10.29 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€12.04

Brand
Alfagomma
Part Numbers
pa161490l
Pros
Possible to install hoses on top of each other
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Benefits
Hoses can be installed over one another
Material
Steel
Cone angle
37 °
Product details
Long model (size D) Cone, metal on metal seal Flared fittings
Surface treatment
Zinc-plated White passivated
Connection 2, type
Hose end
Connection no 1 type
Thread
Connection 2, diameter
16 mm
Connection no 1 type code
DKJ
Connection no 1 thread type
UNF

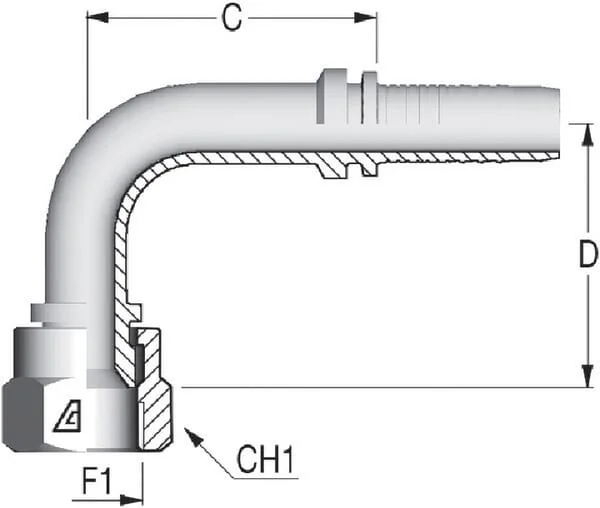

CH1Connection no 1 wrench size
27.0 mm
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 type - male/female
Female
CConnection centre to insert distance
50,2 mm
DConnection 2, centre to end distance
65 mm
Manufacturer
Alfagomma

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,582 genuine Alfagomma spare parts.
