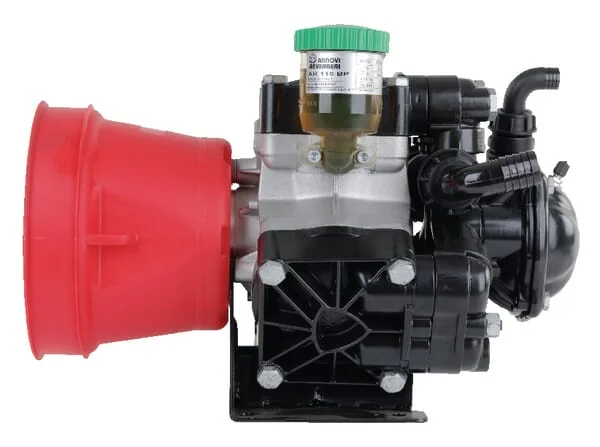

Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP
Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP
Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP
Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP
Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP
Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping

Pay Securely with

Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP

Annovi Reverberi - 1202AR - Piston Diaphragm Pump AR 115 BP

€719.99

(Excl. VAT)

Price

(Excl. VAT)

€719.99

Product Details

Brand
Annovi Reverberi
Unit
Each
Power
4.1 kW
Width
306 mm
Height
293 mm
Length
340 mm
Weight
13 kg
Flow max.
108 l/min
Ø Intake
40 mm
Ø Outlet
25 mm
Properties
All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium The oil bath crank drive has a control tank (except the AR DUE) Screws with galvanised protection treatment made from Dacromet
Shaft type
1 3/8" (6)
Consists of
Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252) The pumps are supplied with rubber membranes as standard
Drive shaft
1 3/8 Inch
Pressure max.
20 BAR
Rotation max.
1000 r/min
Technical info
SP: pump with universal shaft as driving shaft Bp C: pump with a cardan shaft 1 3/8" 6 pieces Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Temperature max.
60 °C
Application range
Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Material piston diaphragms
NBR
Manufacturer
Annovi Reverberi
