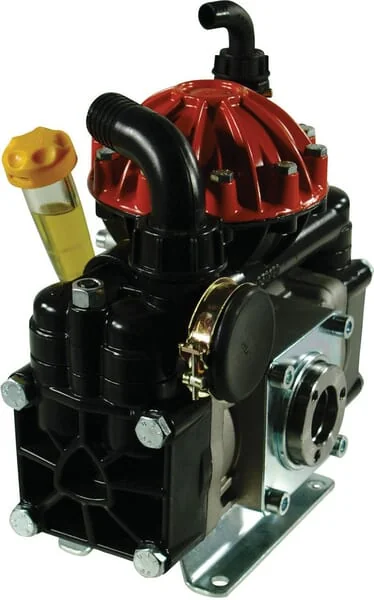

Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex
Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex
Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex
Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex
Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex

In stock - ready to ship

Order now for delivery between 26 May and 29 May
Free shipping

Pay Securely with

Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex

Annovi Reverberi - 16284AR - Pump AR 50 SP SGC Blueflex

€763.68

(Excl. VAT)

Price

(Excl. VAT)

€763.68

Product Description

Anodised medium- and high-pressure pumps All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated)
Annovi Reverberi

Product Details

Brand
Annovi Reverberi
Type
2 membranes
Unit
Each
Power
3.7 kW
Width
302 mm
Height
342 mm
Length
210 mm
Weight
17.5 kg
Benefits
Long service life
Flow max.
52 l/min
Ø Intake
30 mm
Ø Outlet
18 mm
Properties
The crank drive case runs in an oil bath, with a control tank All screws are zinc-plated
Shaft type
Universal
Consists of
The pumps are equipped with rubber membranes as standard A safety valve is fitted as standard (except the AR303, AR403 and AR503) The protective cap is supplied with C/SP pumps as standard
Drive shaft
universal Inch
Pressure max.
40 BAR
Rotation max.
550 r/min
Technical info
SP: pump with universal shaft as driving shaft C: pump with a cardan shaft 1 3/8" 6 pieces C/C: pump with through shaft: double-sided cardan shaft 1 3/8" – 6 pieces – 1 3/8" – 6 pieces C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft
Temperature max.
60 °C
Application range
For sprayers in fruit and wine growing (tall-growing crops)
Material piston diaphragms
BlueFlex
Manufacturer
Annovi Reverberi
