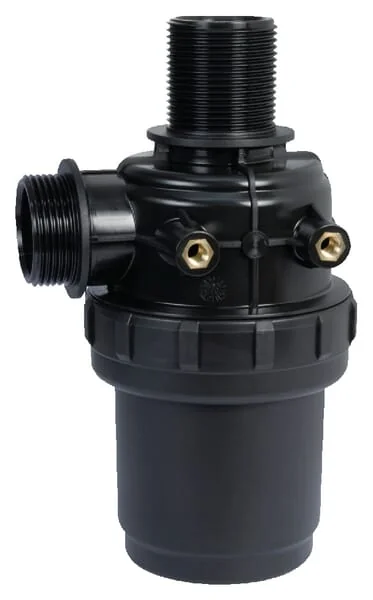

Arag - 3122058 - Suction Filter

OEM Quality

SKU: arag-3122058

Arag - 3122058 - Suction Filter

€19.40€16.58 (Excl. VAT)

RRP:€21.81
Save €2.41

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€19.40

Brand
Part Number
3122058
Package length (mm)
205
Package width (mm)
135
Package height (mm)
135
Mesh
32
Unit
Each
Bypass
No
Height
194 mm
Medium
Water
Properties
Material, housing: polypropylene Material, seals: EPDM (Viton on request)
Consists of
Delivery, incl. filter element with ISO colour coding
Max flow rate
100 l/min
Min flow rate
60 l/min
Inlet port type
Thread
Housing material
Polypropylene
Outlet port type
Thread
Outside diameter
106,5 mm
Filtration surface
72 cm²
Filtration material
Polypropylene
Inlet port thread type
BSP
Outlet port thread type
BSP
Inlet port thread length
16 mm
Outlet port thread length
24 mm
Inlet port thread diameter
1-1/4 Inch
Outlet port thread diameter
1-1/4 Inch
Inlet port type - male/female
Male
Outlet port type - male/female
Male
EAN
8026834333017
Manufacturer

The ARAG 3122058 is a genuine suction filter designed for agricultural spraying systems. Featuring a 1 1/4 inch female connection, this filter is equipped with an 80 mesh stainless steel screen, ensuring effective filtration of liquids to protect pumps and nozzles from debris. Its robust polypropylene body and stainless steel screen provide durability and resistance to common agricultural chemicals. With a flow rate of 150 L/min, a length of 220 mm, and a diameter of 100 mm, it offers reliable performance.
Arag
Arag S.r.l. was founded in 1976 in Rubiera, Italy, by the brothers Giovanni and Franco Arag. The company began by specializing in plastic components for agricultural spraying and has since grown into a global leader in precision farming solutions. Arag remains headquartered in Rubiera, Italy, and operates as an independent entity, continuously innovating in fluid management and control technologies. Arag's product portfolio encompasses a wide array of components for agricultural machinery, particularly focusing on spraying, fluid control, and navigation systems. Key product lines include GPS receivers, spray controllers, flow meters, and a comprehensive range of nozzles and filters. The brand is recognized for its commitment to integrating advanced electronics and hydraulics to enhance the efficiency and precision of agricultural operations, helping farmers optimize resource use and improve yields. At Partao, you can find a comprehensive selection of genuine Arag spare parts. Our top categories for Arag include Hydraulic Control Valves, Sprayers, Ball Bearings, Battery Terminals & Cables, and Bolts & Fasteners. Arag components are a preferred choice for agricultural professionals seeking reliable and technologically advanced solutions for their spraying and fluid management needs. The brand's products are widely used across various farming applications, from large-scale crop production to specialized horticulture, particularly valued for their durability and precision in demanding field conditions. Its global distribution network ensures parts availability and support for machinery operators worldwide. Shop more than 4,185 genuine Arag spare parts.
